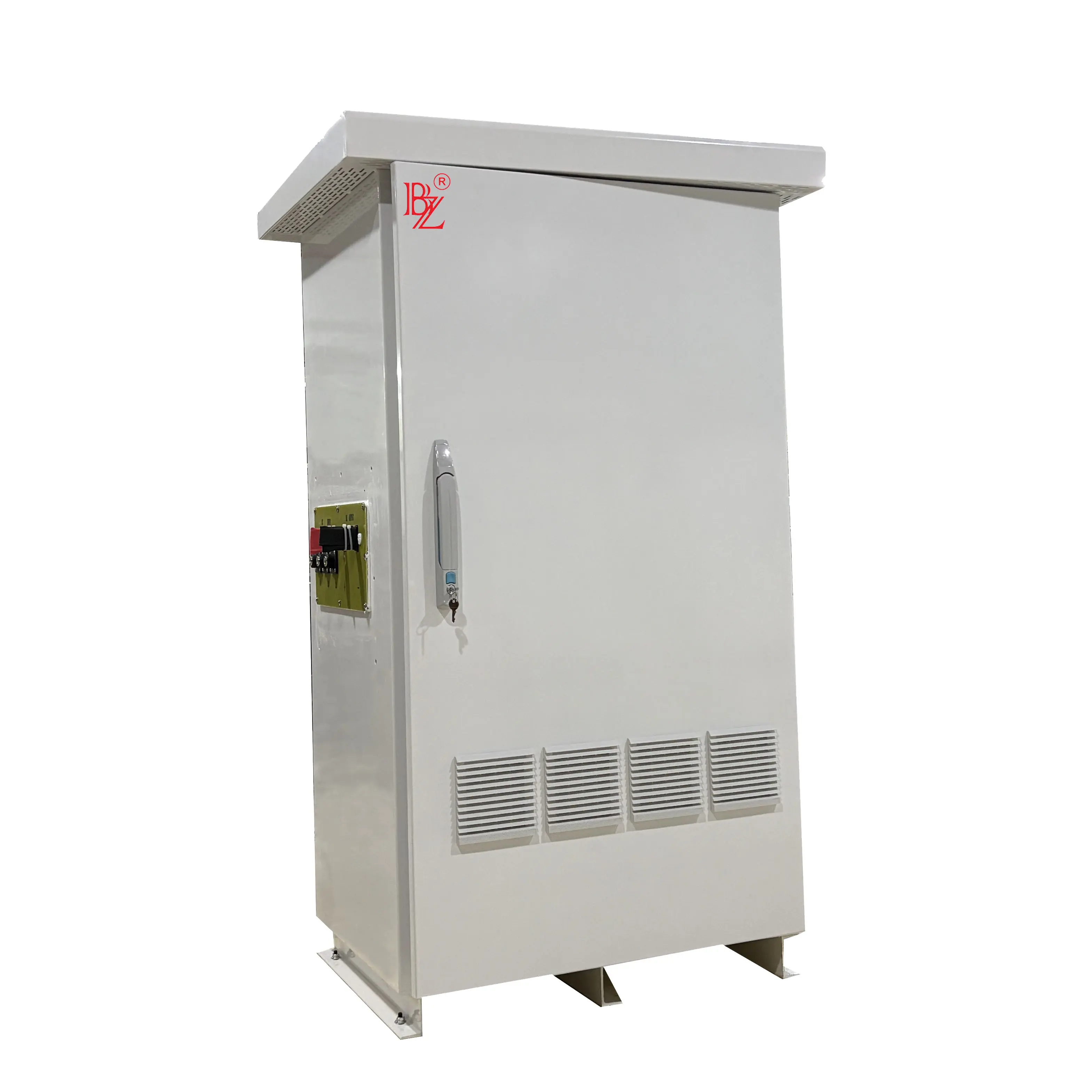

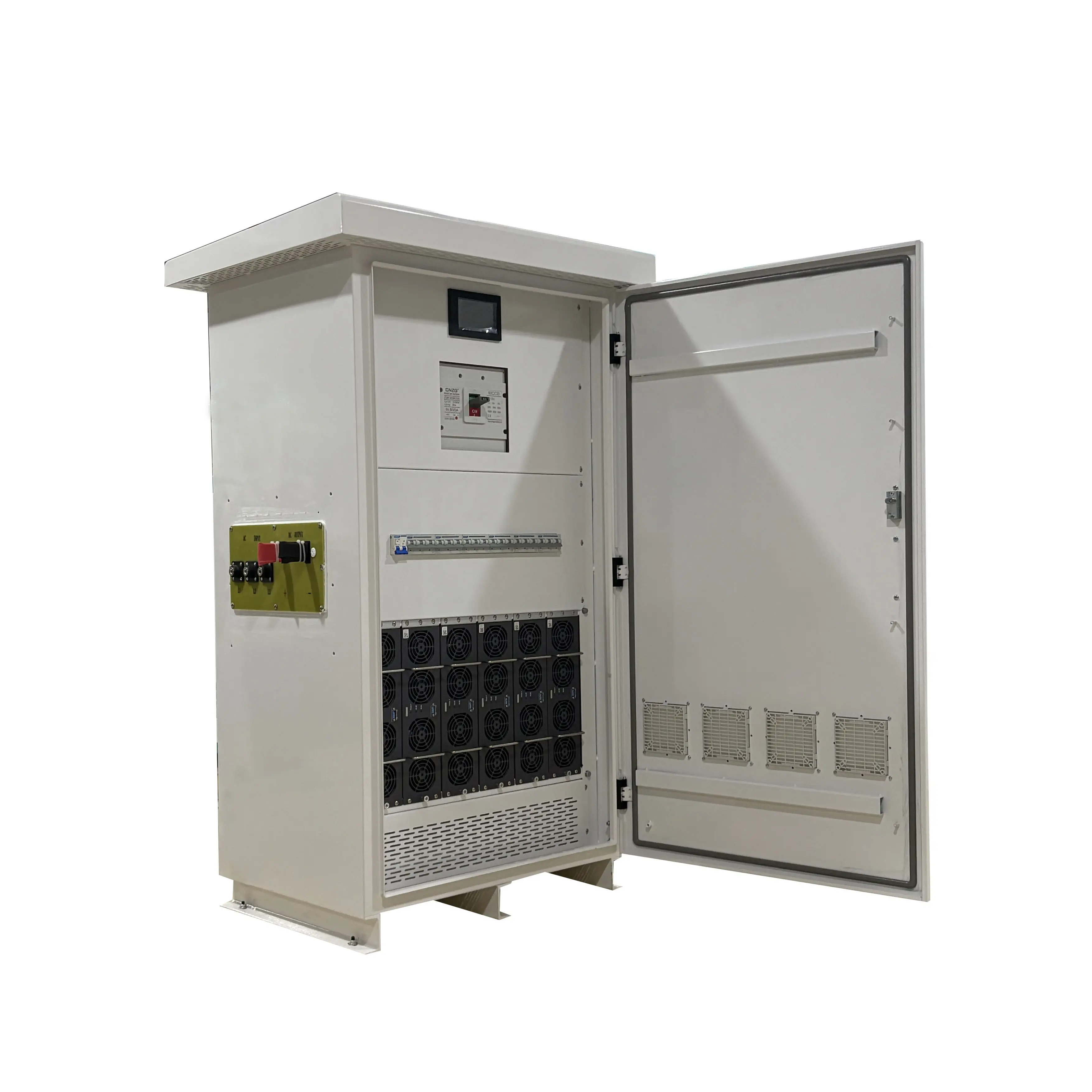

High-Quality IP54 outdoor 240KW 800A 3 phase charger Factories, Factory

IP54 outdoor 240KW 800A 3 phase charger features a 5-inch color LCD touchscreen with an intuitive, user-friendly interface that ensures smooth and convenient operation, allowing users to easily monitor the charging process. Its unique power module supports hot-swap technology, which greatly simplifies maintenance procedures. Components can be quickly replaced without downtime, ensuring continuous and stable operation of the equipment.

Send Inquiry

Product Description

Safety Protection

Equipped with a hard-switch input/output dual-protection circuit breaker and multiple mechanisms including overheating, short-circuit, overload, overvoltage, and undervoltage protection to ensure comprehensive charging safety.

Smart Management

Supports customizable parameter settings (average charging voltage, float voltage, current) and three distinct charging modes: scheduled, manual, and automatic to adapt to various scenarios.

Life Extension

Features an innovative scheduled start/stop function that prevents prolonged overcharging, saving energy and significantly extending battery lifespan compared to traditional DC power chargers.

Intelligent Control

Utilizes RS485 standard communication protocol for remote monitoring and control. Seamlessly integrates with lithium-ion BMS systems for high-efficiency charging solutions.

Technical Specifications

Environmental Conditions	• Operation Temperature: -40°C ~ +75°C (derating > 55°C) • Storage Temperature: -40°C ~ +70°C • Humidity: ≤95%RH (non-condensing) • Cooling: Forced air cooling • Altitude: 2,000m (derating > 2,000m) • Atmospheric Pressure: 79 kPa ~ 106 kPa
AC Input	• System: Three phases + PE • Rated Voltage: 380 Vac • Voltage Range: 260 Vac ~ 530 Vac • Maximum Current: 480A • Frequency: 50Hz/60Hz
DC Output	• Voltage Range: 50V ~ 1000V • Current Range: 1A ~ 800A • Rated Current: 800A @ 400V (240A @ 1000V) • Steady Voltage Precision: < ±0.5% • Startup Overshoot: ≤ ±3%
Power Factor & THD	• Power Factor: ≥0.95 (20%-50% load) / ≥0.99 (100% load) • THD: ≤5% (50%-100% load)
Efficiency	≥95.2% (under rated input voltage @ 750V, 50%~100% load)

Frequently Asked Questions

What safety mechanisms does this charger use?

The charger features a dual-protection circuit breaker and comprehensive guards against overheating, short-circuit, overload, overvoltage, and undervoltage.

Can I customize the charging parameters?

Yes, it supports customizable settings for key metrics including average charging voltage, float voltage, and charging current to suit different battery types.

What charging modes are available?

The product offers three flexible charging modes: scheduled, manual, and automatic to accommodate various operational scenarios.

How does it integrate with smart systems?

It supports the RS485 communication protocol for remote monitoring and can be integrated with lithium-ion BMS systems for precise control.

What are the environmental operating requirements?

It operates in temperatures from -40°C to +75°C and altitudes up to 2,000 meters, utilizing forced air cooling for thermal management.

Is there a function to prevent battery overcharging?

Yes, the innovative scheduled start/stop function effectively prevents prolonged overcharging, significantly extending the battery's overall lifespan.
