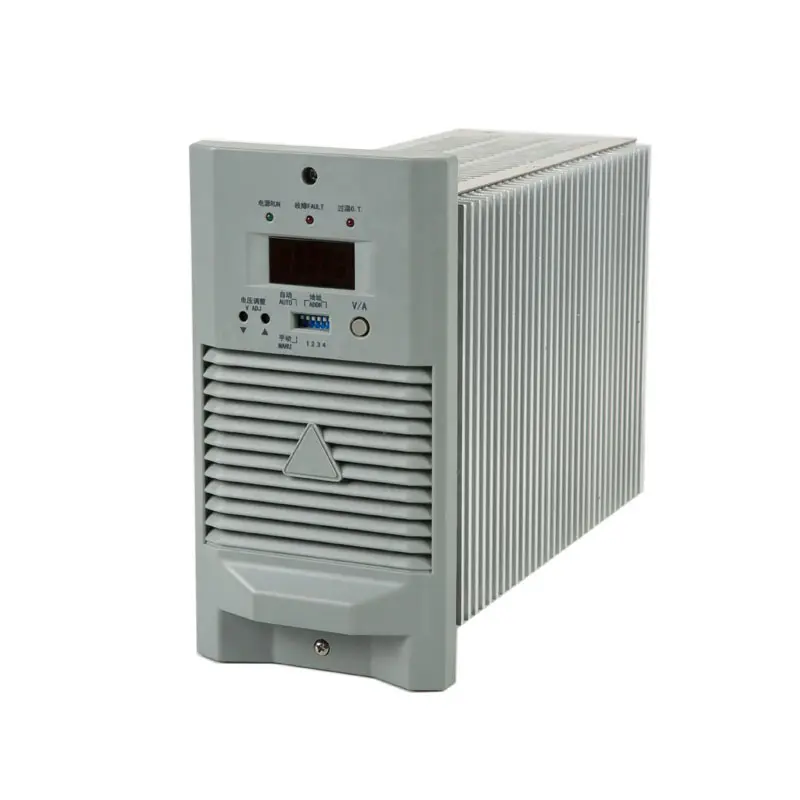

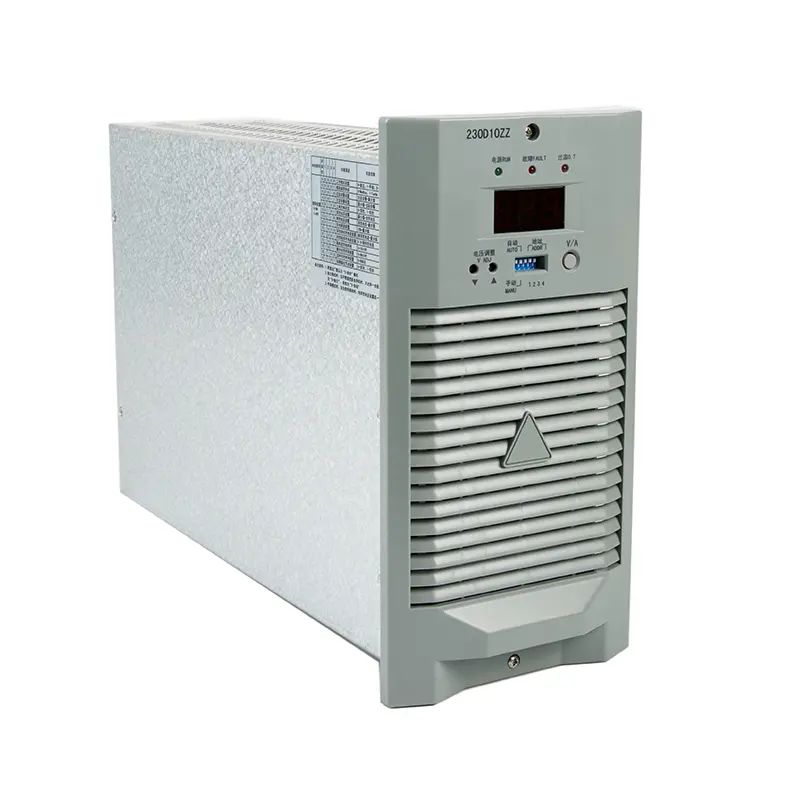

Modular design, N+1 hot backup, and smooth expansion capabilities. The intelligent design achieves the following functions automatically via serial communication: module switch on/off, charging mode converting, output voltage setting, output current setting, and SYNC switch over. Equipped with a standard RS-485 interface for easy integration with automation systems, supporting "4-remotes" functions and CAN interface. Fully hot swappable for continuous operation.
Superior performance with efficiency exceeding 94%.
High power converter frequency, high stability, compact size, and light weight.
Isolation automatic current sharing technology with unevenness < ±3%.
Built-in output isolation diode and automatic protection mechanisms.
LED digit display, clear indication lights, and intuitive button operation.
| Model Item | 230D20NZ-D | |
| Output current (A) | 20 | |
| Power (KW) | 6 | |
| Weight (kg) | 7.5 (with package) | |
| Cooling type | Fan cooling | |
| Radiator T-rise | ≤30℃ | |
| Input voltage (VAC) | Min | 323 |
| Typical | 380 | |
| Max | 437 | |
| Output voltage (VDC) | Min | 176 |
| Typical | 242 | |
| Max | 300 | |
| Voltage regulation | ±0.5% | |
| Current regulation | ±1% | |
| Efficiency | ≥94% | |
| Working temperature (℃) | Min | -10 |
| Typical | 25 | |
| Max | 40 | |
| Current share imbalance | ±3% | |
| Soft start time (S) | 3~8 | |
| Ripple | ≤0.5% | |
| Over voltage protection | 320±15VDC | |
| Automatic current limit | Maximum output current is limited to 110% of the rated output current. | |
| Short circuit protection | Self-recoverable protection from short circuits. | |
