High-Quality 3 phase battery charger with 50-1000VDC Factories, Exporter

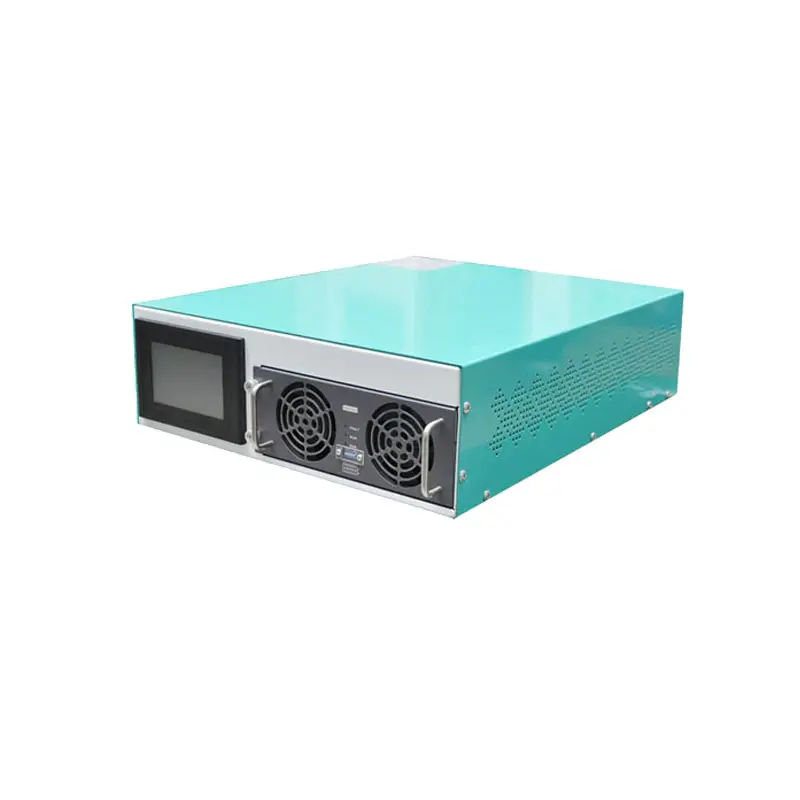

BEG series 3 phase battery charger 1-50A is developed by Bangzhao Electric single-phase or three-phase AC input without neutral line, with high efficiency, high power density, low harmonics,constant power output and wide voltage output. high efficiency, high power density, low harmonics, constant power output, wide voltage output and other advantages.Â
It suitable for Lead-acid battery, GEL battery, Lithium iron phosphate battery, Fuel cell and so on.

Send Inquiry

Product Description

🚀 Application

✔

Large, medium and small electric vehicle charging stations.

✔

High-speed service areas, stations, docks and other transportation hub areas.

✔

Public places such as urban residential areas, shopping plazas and electric business places.

💎 Product Features

★

5 inch color LCD touch screen, easy and simple to operate.

★

Power supply module is pluggable, convenient for later maintenance.

★

Input and output with protection circuit breaker hard switch, safe and reliable.

★

Can set the battery average charging voltage, float charging voltage, charging current, etc.

★

Timing charging, manual and automatic mode can be set.

★

Equipped with overheat, short circuit, overload, overvoltage, undervoltage and other protection functions.

★

6U rack type is suitable for various standard cabinet installation; Cabinet type is suitable for high current charging station system.

📋 Product Parameter

Category	Name	Parameter
Model		BEG75050
Environmental conditions	Operation temperature	-40°C ~ +75°C (derating above 55°C)
	Storage temperature	-40°C ~ +70°C
	Relative humidity	≤95%RH, without condensation
	Cooling mode	Forced air cooling
	Altitude	2,000 m (derating above 2,000 m)
	Atmospheric pressure	79 kPa ~ 106 kPa
AC input	Input system	Three phases + PE
	Voltage range	260 Vac ~ 530 Vac
	Max static voltage	600 Vac
	Rated voltage	400 Vac
	Maximum current	32A
	Grid frequency	45 Hz~ 65 Hz
	Rated frequency	50Hz/60Hz
DC output	Voltage range	50 Vdc ~ 750Vdc
	Current range	0 ~ 33.3A (high voltage)/ 0~50A(low voltage)
	Rated current	26A@750V
	Steady voltage precision	≤±0.5%
	Steady current precision	≤±1%
	Load regulation rate	≤±0.5%
	Grid regulation rate	≤±0.1% (320V ~ 530V)
	Startup overshoot	≤±3%
	Noise (P-P)	≤1% (150~750V, 0~20MHz)
Efficiency & Power	Power factor	≥0.99 @Full-load
Efficiency & Power	Efficiency	≥95.2% @750V, 50%~100% Load

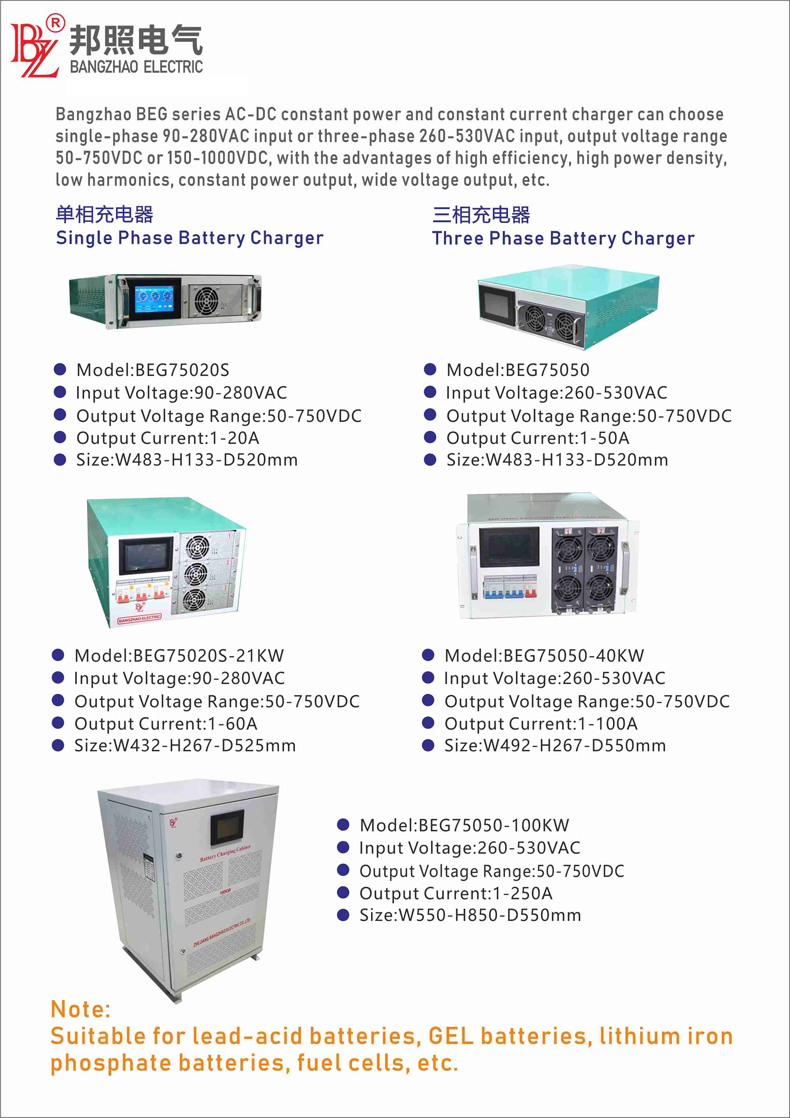

🖼️ Product Display

❓ Frequently Asked Questions

What is the input voltage range for the BEG75050 model?

The AC input voltage range is 260 Vac to 530 Vac, with a rated voltage of 400 Vac.

Can I customize the charging current and voltage?

Yes, the system allows you to set parameters such as average charging voltage, float charging voltage, and charging current via the 5-inch touch screen.

What cooling method does the power module use?

The system utilizes forced air cooling to maintain optimal operating temperatures.

Is the module suitable for extreme temperature environments?

The module operates between -40°C and +75°C. Please note that power derating is required when the temperature exceeds 55°C.

What safety protections are built into the system?

It includes comprehensive protection functions: overheat, short circuit, overload, overvoltage, and undervoltage protection, along with hard switch circuit breakers.

What is the maximum efficiency of this charging module?

The module achieves a high efficiency of ≥95.2% under rated input voltage and specific load conditions.
