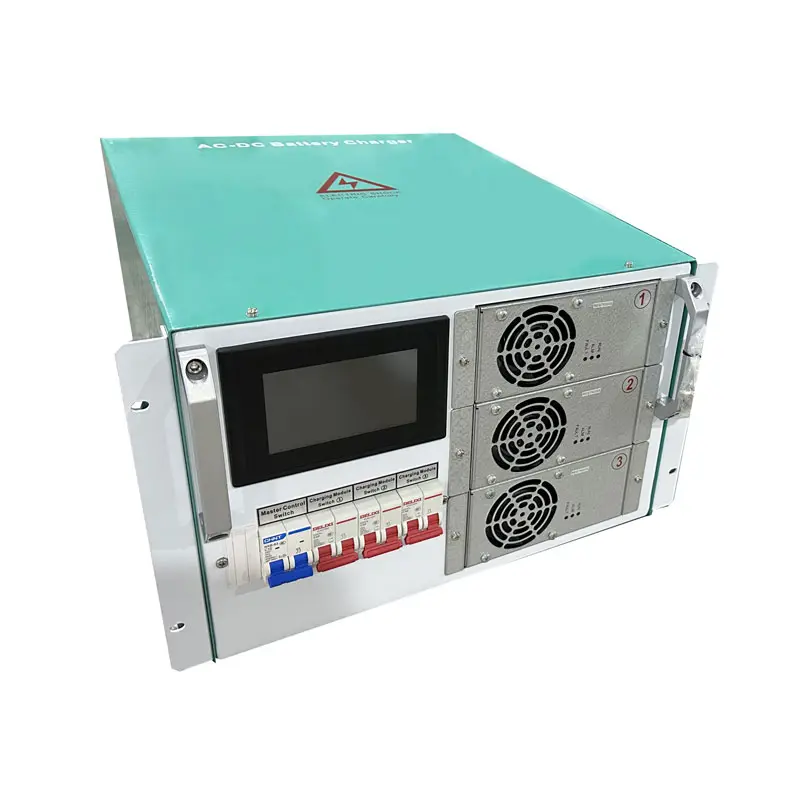

High-Quality 1-60A Single phase battery charger Supplier, Suppliers

BEG series 1-60A Single phase battery charger is developed by Bangzhao Electric single-phase AC input with neutral line, with high efficiency, high power density, low harmonics,constant power output and wide voltage output. high efficiency, high power density, low harmonics, constant power output, wide voltage output and other advantages.Â
It suitable for Lead-acid battery, GEL battery, Lithium iron phosphate battery, Fuel cell and so on.

Send Inquiry

Product Description

Application

✔ Large, medium and small electric vehicle charging stations;

✔ High-speed service areas, stations, docks and other transportation hub areas;

✔ Public places such as urban residential areas, shopping plazas and electric business places.

Product Features

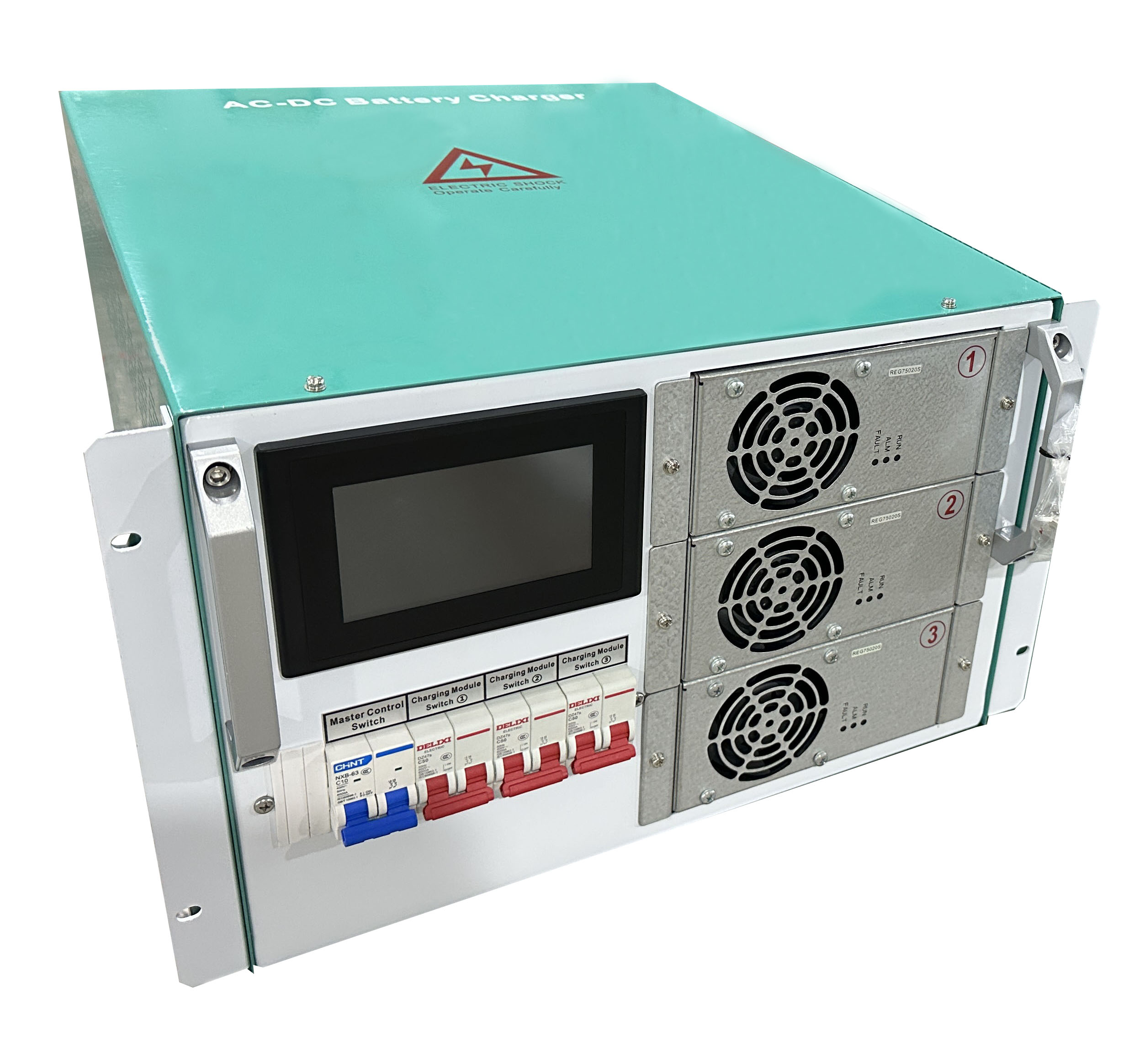

★ 5 inch color LCD touch screen, easy and simple to operate;

★ Power supply module is pluggable, convenient for later maintenance;

★ Input and output with protection circuit breaker hard switch, safe and reliable.

★ Can set the battery average charging voltage, float charging voltage, charging current, etc;

★ Timing charging, manual and automatic mode can be set;

★ With overheat, short circuit, overload, overvoltage, undervoltage and other protection functions;

★ 6U rack type is suitable for various standard cabinet installation; Cabinet type is suitable for high current charging station system.

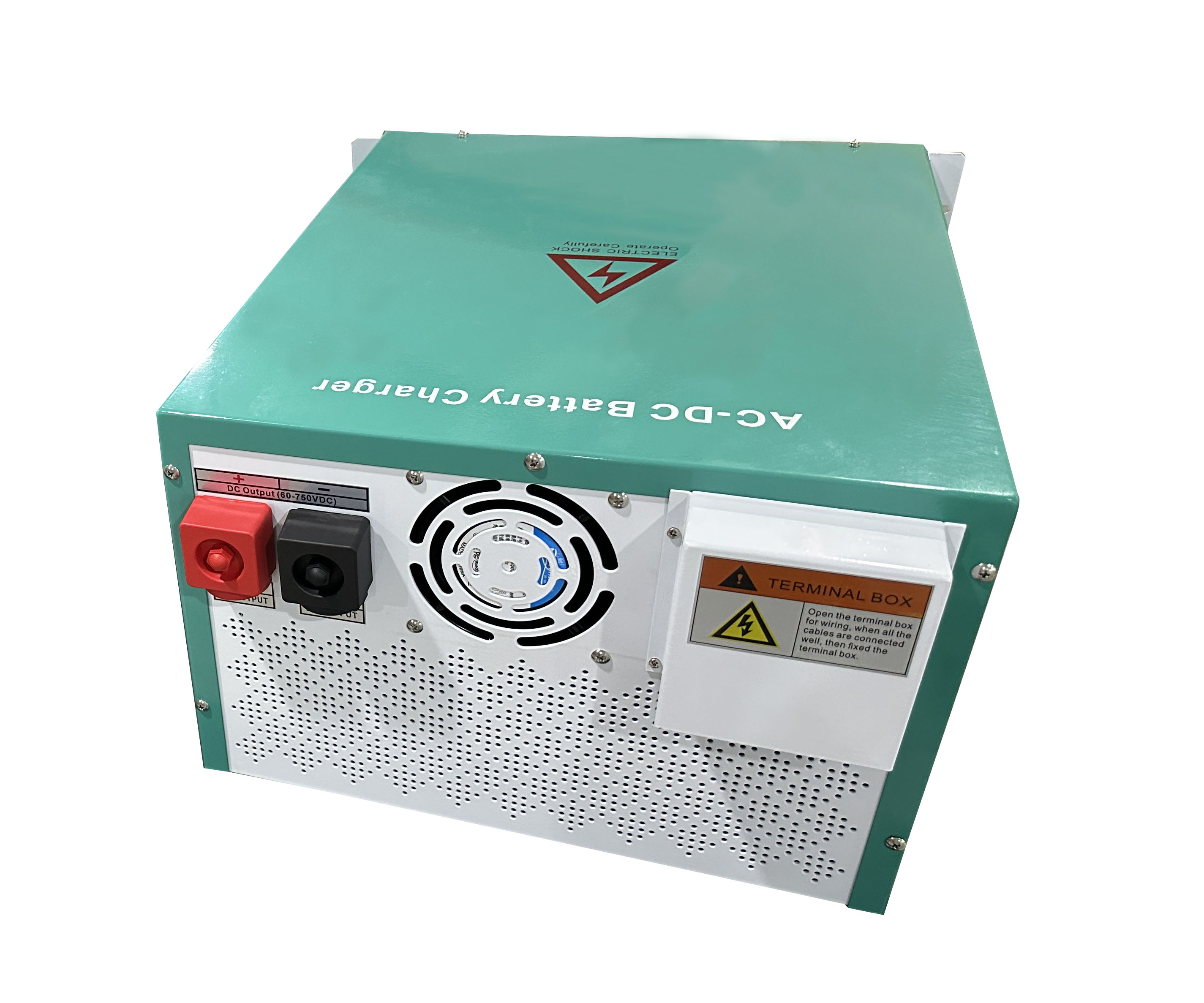

Electric vehicle charging station system display

Product Parameter

Category	Name	Parameter Details
Environmental conditions	Operating temperature	-40°C ~ +75°C, derating required above 55°C
	Storage temperature	-40°C ~ +70°C
	Relative humidity	≤95%RH, No condensation
	Cooling way	Forced air cooling
	Altitude	2000m (derating required above 2000m)
	Atmospheric pressure	79kPa ~ 106kPa
AC input	Input phase	Single phase L/N or L1/L2 + PE
	Voltage range	90-280Vac
	Max static voltage	300Vac (no operation)
	Rated voltage	220Vac
	Maximum current	94A
	Grid frequency	45Hz~65Hz
	Rated frequency	50Hz/60Hz
DC output	Voltage range	50-750Vdc
	Rated Voltage	300VDC
	Current range	0 ~ 60A (Max 28A at 750V)
	Voltage precision	<±0.5% (Steady)
	Current precision	≤±1% (20% ~ 100% rated range)
	Load regulation	≤±0.5%
Power Factor	PF & THD	≥0.99 @100% load; THD ≤5% @50-100% load
Efficiency	≥94.5% @750V, 50% to 100% load current
Other	Noise	≤ 65dB(A) (at 1m away)

Frequently Asked Questions

What is the operating temperature range for this charger?

The device operates reliably between -40°C and +75°C. Please note that power derating is required when the ambient temperature exceeds 55°C.

How does the 5-inch touch screen improve operation?

The color LCD touch screen provides a user-friendly interface to set charging modes (timing, manual, or automatic) and monitor real-time parameters like voltage and current.

What safety protections are built into the system?

The system includes comprehensive protection against overheat, short circuit, overload, overvoltage, and undervoltage, along with input/output circuit breaker hard switches.

Is the power supply module easy to replace?

Yes, the power supply module features a pluggable design, making it extremely convenient for maintenance or future upgrades without extensive downtime.

What is the peak efficiency of this charging system?

The system achieves a high energy efficiency of ≥94.5% at 750V with a 50% to 100% load current, ensuring minimal energy loss during the charging process.

Can this unit be installed in a standard server rack?

Yes, the 6U rack-type design is specifically built for installation in various standard cabinets, while the cabinet-type is optimized for high-current station systems.
