Custom single phase battery charger 50-750VDC Suppliers, Factory

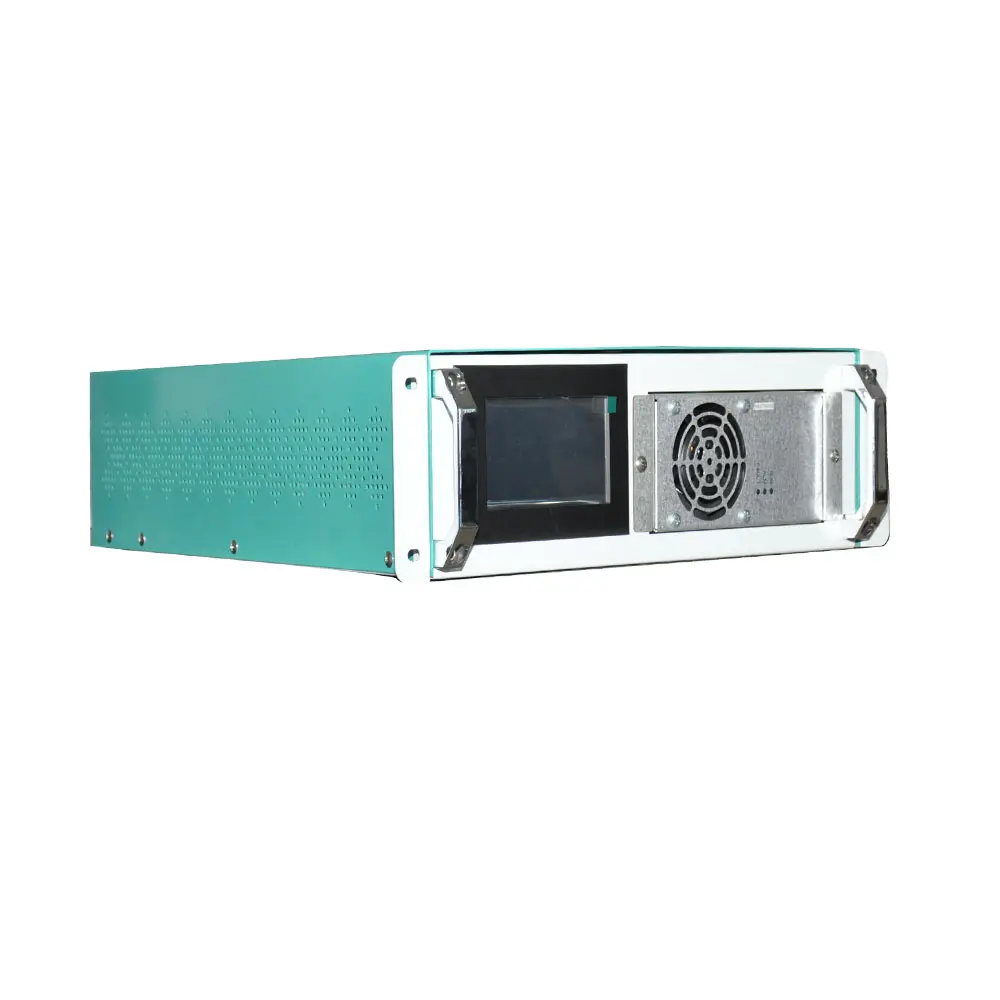

BEG series single phase battery charger 1-20A is developed by Bangzhao Electric single-phase AC input with neutral line, with high efficiency, high power density, low harmonics,constant power output and wide voltage output. high efficiency, high power density, low harmonics, constant power output, wide voltage output and other advantages.Â
It suitable for Lead-acid battery, GEL battery, Lithium iron phosphate battery, Fuel cell and so on.

Send Inquiry

Product Description

Application Areas

Large, medium and small electric vehicle charging stations

High-speed service areas, stations, docks and other transportation hubs

Public places such as urban residential areas, shopping plazas and business centers

Product Features

5 inch color LCD touch screen, easy and simple to operate

Power supply module is pluggable, convenient for maintenance

Input/output protection with circuit breaker hard switch, safe and reliable

Adjustable battery average/float charging voltage and current

Supports timing charging, manual, and automatic modes

Full protection: Overheat, Short circuit, Overload, Over/Under voltage

6U rack type for standard cabinets or cabinet type for high current systems

Product Parameters

Category	Name	Parameter
Environmental conditions	Operating temperature	-40°C ~ +75°C, derating required above 55°C
	Storage temperature	-40°C ~ +70°C
	Relative humidity	≤95%RH, No condensation
	Cooling way	Forced air cooling
	Altitude	2000m, derating required above 2000m
	Atmospheric pressure	79kPa ~ 106kPa
AC input	Input phase	Single phase L/N or L1/L2 + PE
	Voltage range	90-280Vac
	Max static voltage	300Vac (no operation)
	Rated voltage	220Vac
	Maximum current	32A
	Grid frequency	45Hz~65Hz
	Rated frequency	50Hz/60Hz
DC output	Voltage range	50-750Vdc
	Rated Voltage	110VDC
	Current range	0 ~ 20A (Max 9.3A at 750V)
	Steady voltage precision	<±0.5%
	Steady current precision	≤±1% (20% ~ 100% load)
	Load regulation rate	≤±0.5%
Power Factor / THD	Power factor	≥0.99 @100% full load
Power Factor / THD	THD	≤5% @50% to 100% load
Efficiency	Efficiency	≥94.5% @750V, 50%-100% load
Other	Temperature coefficient	<20A
Other	Noise	≤ 65dB(A) (at 1m)

Frequently Asked Questions

Q1: What are the primary applications for this charging system?

A: It is suitable for various charging stations (large to small), transportation hubs like stations and docks, and public areas such as shopping plazas and residential communities.

Q2: How does the system ensure safety during operation?

A: The system includes integrated protection for overheat, short circuit, overload, overvoltage, and undervoltage, along with physical circuit breaker hard switches for both input and output.

Q3: Is the charging output adjustable?

A: Yes, users can set the battery average charging voltage, float charging voltage, and charging current via the 5-inch color LCD touch screen.

Q4: Can this be installed in a standard server cabinet?

A: Yes, the 6U rack type design is specifically made for installation in various standard cabinets, while the cabinet type is available for high current requirements.

Q5: What is the operating temperature range for this equipment?

A: It operates efficiently from -40°C to +75°C. Please note that derating is required when the ambient temperature exceeds 55°C.

Q6: How efficient is the power conversion?

A: The system achieves an efficiency of ≥94.5% at 750V with a load current between 50% and 100% at rated input voltage.
