High-Quality Tan Delta (δ) High Voltage cable testing 90KV Manufacturer, Factory

Ultra-low frequency high voltage generator (with tangent function) is called an advanced tool in the field of electric power testing. It is the perfect integration of modern digital frequency conversion technology and microcomputer control, showing powerful performance. The device can output 0.1Hz, 0.05Hz, 0.02Hz and other ultra-low-frequency high-voltage signals to meet the needs of different test scenarios. At the same time, it is also equipped with a dielectric loss angle tangent (tgÎ´) measurement function, which is essential for accurately assessing the insulation performance of power equipment.

Send Inquiry

Product Description

📋 Description

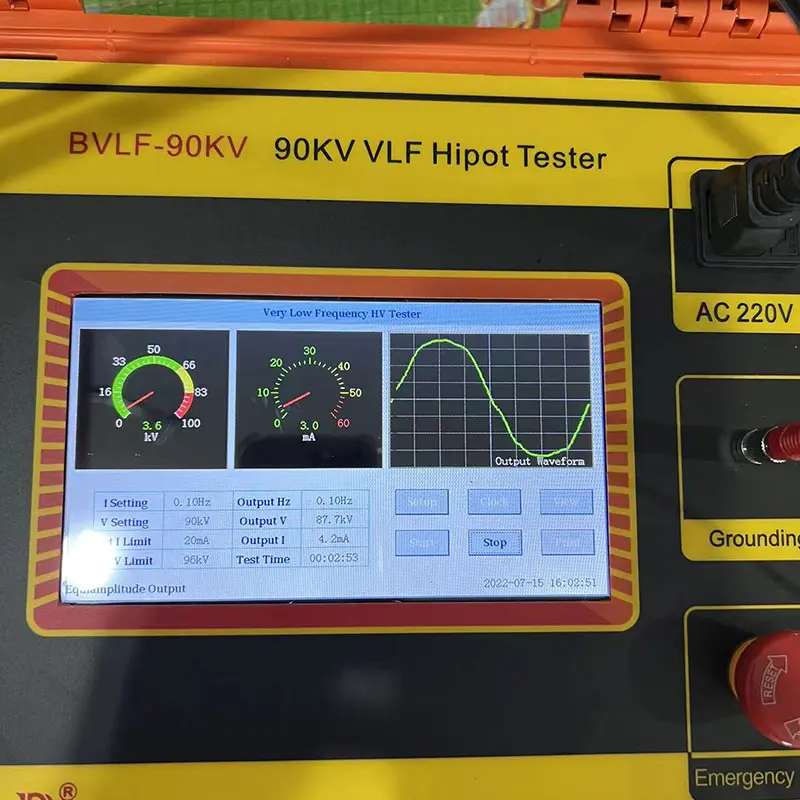

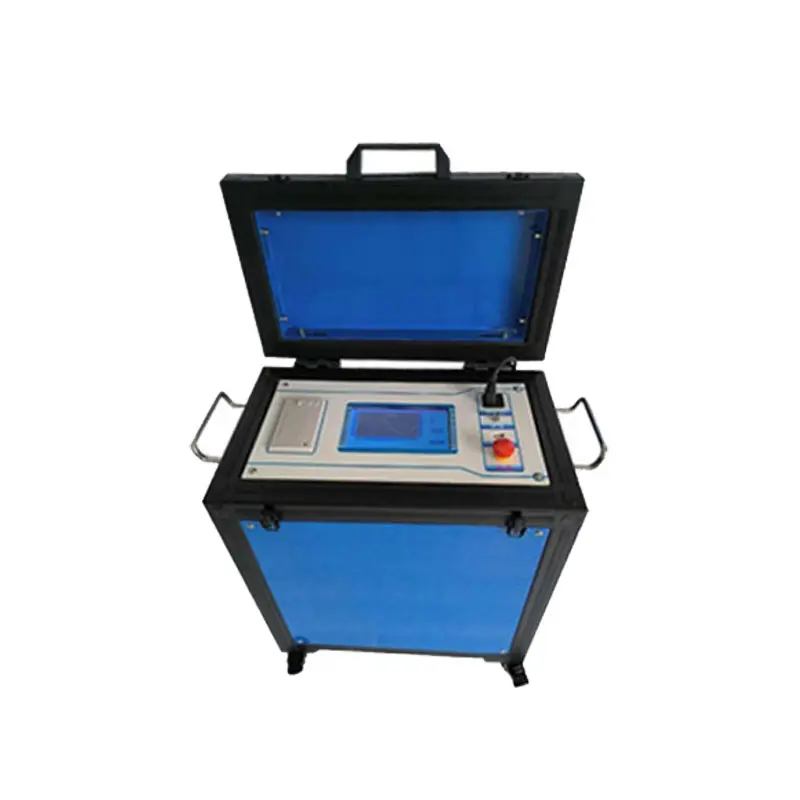

It excels in portability and maneuverability. The unit is compact and lightweight, making it easy to carry to various test sites. The user interface is simple and easy to understand, with a large LCD screen that presents measurement data and waveforms at a glance. In addition, it also has the function of automatically printing test reports, eliminating the need to manually record and organize data, which greatly improves work efficiency.

For power equipment insulation testing, this ultra-low frequency high-voltage generator provides an efficient and accurate solution to help timely detection of potential problems in equipment insulation, to ensure the safe and stable operation of the power system, is an indispensable professional equipment for power testing.

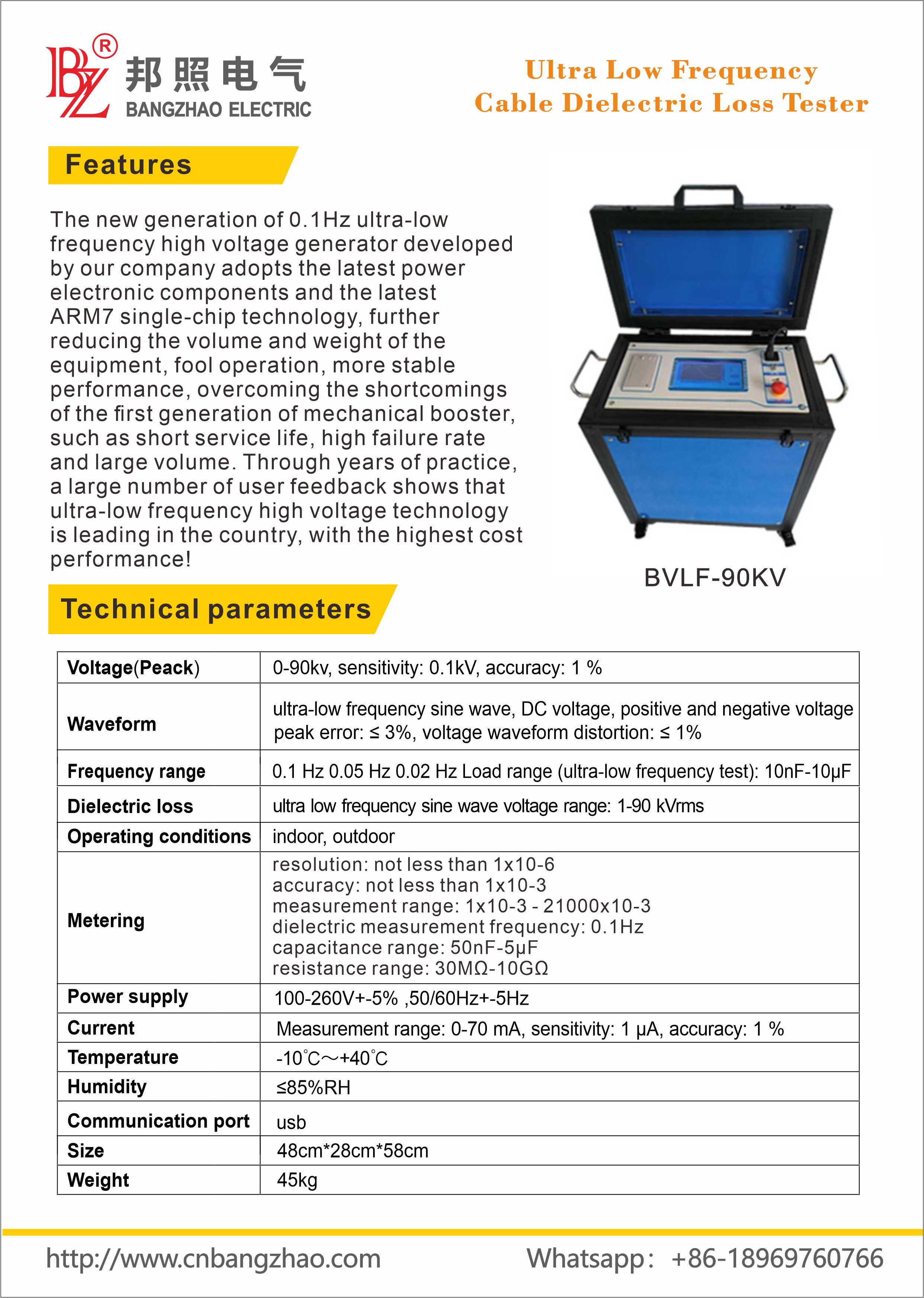

⚙ Product Features

Advanced technology: adopting digital frequency conversion technology, microcomputer control, boosting, bucking, measuring, protection, etc. The testing process is fully automated.

Equipment operation: simple wiring, easy to use.

Comprehensive protection: multiple protection (over-voltage protection, high and low voltage side over-current protection), rapid action (action time ≤ 10ms).

Safe and reliable: controller and high voltage generator low voltage connection, photoelectric control, the use of safe and reliable.

Control Precision: Adopt high and low voltage closed-loop negative feedback control circuit, output without capacitance rise effect.

Complete configuration: capacitive touch screen, LCD Chinese character display, automatic storage, automatic printing.

Large test range: 0.1Hz, 0.05Hz, 0.02Hz, multiple frequency selection, large test range.

Connectivity: Chinese and English switching and USB function support.

Frequently Asked Questions

Q1: What are the main applications of this ultra-low frequency generator? A1: It is primarily used for power equipment insulation testing, helping to detect potential insulation issues in power systems to ensure safe and stable operation.

Q2: How does the device handle safety during testing? A2: The device features comprehensive protection, including over-voltage and high/low voltage side over-current protection, with a rapid response time of 10ms or less.

Q3: Is the testing process manual or automated? A3: The testing process is fully automated, utilizing digital frequency conversion technology and microcomputer control for boosting, measuring, and protection.

Q4: Can the test data be exported or printed? A4: Yes, the unit includes automatic storage and printing functions, and it is equipped with a USB port for data management.

Q5: What frequencies can be selected for testing? A5: The device offers a wide test range with multiple frequency options, including 0.1Hz, 0.05Hz, and 0.02Hz.

Q6: Is the user interface friendly for non-Chinese speakers? A6: Absolutely. The system supports switching between Chinese and English languages and features a clear LCD screen for easy data visualization.
