Custom power phase converter with AC-DC-AC Factories, Exporter

Custom power phase converter with AC-DC-AC Factories, Exporter

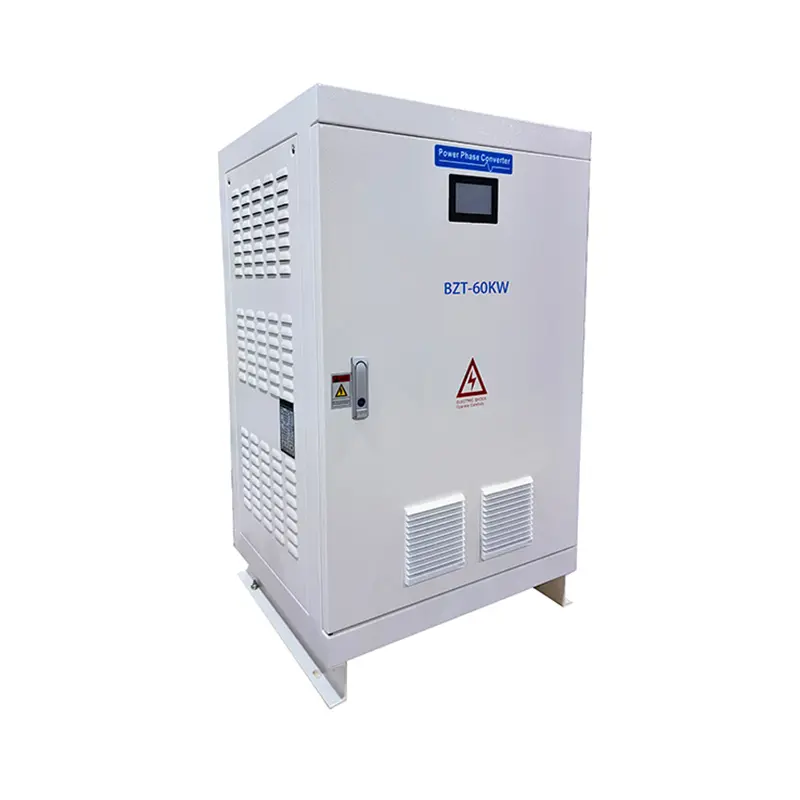

Bangzhao Electric's BZT series power phase converters use an AC-DC-AC circuit structure to convert AC single-phase voltage into industrial three-phase voltage. Based on the US TI DSP28335 microprocessor and employing the Liuling IPM intelligent module, they offer simple maintenance, long life, and low losses. They utilize dual closed-loop control, fast response, and powerful protection features, enabling single-unit capacities up to 500kW.

Send Inquiry

Product Description

Product Feature
✔ Wide voltage input 80-320VAC, special voltage can also be customized according to requirements, and it can adapt to the low working voltage of universal mains in all regions.
✔ The output is industrial three-phase power, but it is economical because it is based on civil single-phase electricity billing.
✔ The core components are imported devices. Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance, long service life, powerful protection functions, and convenient replacement and maintenance.
✔ Using TI central processor DSP28335 chip from USA, the response speed is rapid and accurate, providing a stable and clean power supply for the load.
✔ Humanized safety design: adopts isolation transformer design. The input and output are completely electrically isolated. Equipped with MCCB for convenient and safe installation. Fully enclosed live parts prevent children from getting an electric shock.
✔ Output perfect protection function, with output over-voltage, overload, short circuit, over temperature, self-diagnosis protection and other protection.
✔ LCD+LED display: shows input and output voltage, current, power consumption, fault display, convenient for customers to quickly find faults and guide maintenance.
✔ The whole machine adopts a modular design, plug-in type design, easy maintenance, reducing the hidden costs of machine failure to repair.
✔ The converter has the function of filtering the grid disturbance and interference, providing a more stable and pure power supply environment for the backend devices.
Product Parameters
ModelBZT series
Circuit ModeIPM module, SVPWM Modulation
Output waveformStandard pure sine wave
Input Voltage1 phase 2 wire/2 phase 3 wire/3 phase 4 wire+PE wire 50HZ/60HZ±10HZ(can customization)
Output Voltage1 phase 2 wire/2 phase 3 wire/3 phase 4 wire+PE wire
Output Frequency50HZ/60HZ(30-90HZ can continuously adjustable)
Startup mode selectionStable frequency step-down start or frequency start (selected on LCD screen)
Frequency stability≤0.01%
Load regulation≤3%
THD≤2%(Linear load)
Phase Angle120°±1°
Crest Factor Ratio3:1
LCD displayOutput voltage, current, frequency, power, fault code, time, temperature, startup mode
Protection FunctionOver-current, overvoltage, over-temperature, short circuit, under-voltage protection, buzzer alarm
Protective Reaction Time≤2ms
Machine efficiency≥94%
Insulation properties1800VAC/10mA/1min
Insulation impedance500V DC/50MΩ
Cooling methodForced air cooling
Noise1m > 60db
Ambient temperature-25~55℃
Environment humidity0~95%(No condensation)
RemarkParameters can be customized according to customer's requirement
Frequently Asked Questions
What is the input voltage range for this converter?
The standard input range is a wide 80-320VAC, making it adaptable to various regional power grids. Custom voltages are also available upon request.
What technology ensures the stability of the power supply?
The system utilizes the sixth-generation Mitsubishi IPM intelligent module and a USA TI DSP28335 central processor for rapid, accurate response and stable performance.
Is the output electrically isolated from the input?
Yes, the converter features an isolation transformer design, ensuring the input and output are completely electrically isolated for maximum safety.
Can I adjust the output frequency?
Yes, the standard output is 50Hz/60Hz, but it can be continuously adjusted within the range of 30-90Hz to suit specific equipment needs.
What kind of maintenance does the unit require?
The unit is designed with a modular, plug-in architecture, which significantly simplifies maintenance and reduces the time required for repairs.
How do I monitor the system status?
The integrated LCD+LED display provides real-time data on voltage, current, power consumption, and fault codes for easy monitoring and diagnostics.
