01High speed & performance 32bit processor, advanced EMC design
02Advanced MPPT tracking algorithm, tracking efficiency > 99%
03High performance IGBT power module with multiphase synchronous rectification
04Ultrafast maximum power point tracking speed
05Advanced battery activation technology, increasing lifespan by at least 30%
06Wide PV array voltage input, saving costs on combiner boxes and wiring
07Full enclosed duct design with high-speed cooling fan for harsh environments

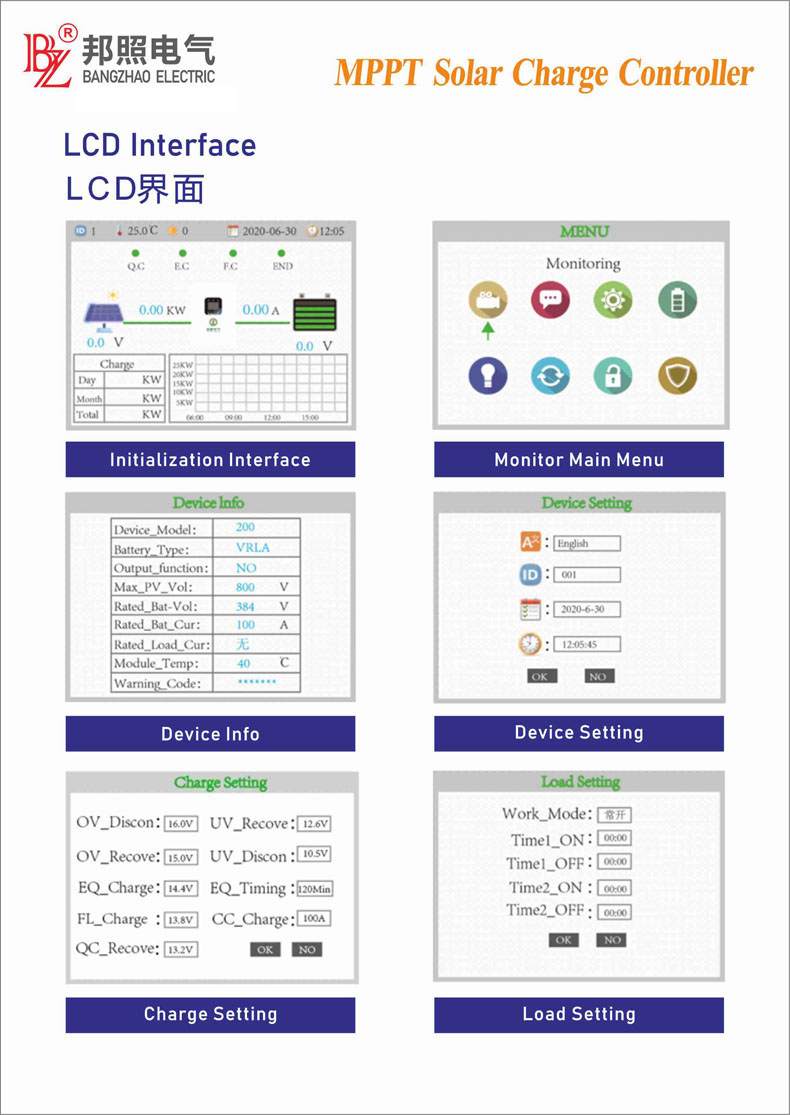

083'' LCD screen and LED indicators for real-time status monitoring
09Adjustable parameters via touching keys on the LCD panel
10Statistical function for daily, monthly, and total power generation (SOC)
11Humanized browsing interface for easy operation
12Real-time display of environment temperature with auto-compensation
13Dual protection function to prevent battery damage
14Standard Modbus communication protocol (RS-485/GPRS optional)
Large-scale Ground-mounted PV Projects
Adapted to systems with an ultra-wide voltage range of 200 - 850V. Intelligent power allocation algorithms increase efficiency by 22-25%, capturing maximum light even during frequent cloud cover.
Remote Islands and Uninhabited Areas
Provides stable power for deserts and off-grid locations where traditional power infrastructure is unreachable.
Extreme Climate Operations
IP23 rated protection designed for stability in extreme temperatures ranging from -20°C to 55°C, ideal for remote research facilities.
Multiple Energy Storage Scenarios
Compatible with sodium ion, lithium titanate, and new energy storage batteries using a four-stage charging strategy and adaptive temperature compensation.
Industrial & Commercial Power Protection
Supports 192V/220V/360V/480V DC voltage output for large-scale enterprise energy needs.
Frequently Asked Questions
What is the efficiency of the MPPT tracking algorithm?
The controller utilizes an advanced MPPT algorithm that achieves a tracking efficiency of more than 99%, ensuring maximum energy harvest from your PV arrays.
Can this controller work in extreme temperature environments?
Yes, it is designed for harsh conditions with an operating temperature range of -20°C to 55°C and features a full enclosed duct design for effective cooling.
How does it help in extending battery life?
It employs advanced battery activation technology and a four-stage charging strategy which can increase battery lifespan by at least 30%.
What types of batteries are compatible with this system?
The controller is highly flexible and compatible with traditional batteries as well as new types like sodium ion and lithium titanate energy storage batteries.
Does it support remote monitoring and communication?
Yes, it supports the standard Modbus communication protocol via RS-485 or GPRS, allowing for extended distance monitoring and data management.
What DC voltage outputs are supported for commercial use?
The system is versatile, supporting multiple DC voltage outputs including 192V, 220V, 360V, and 480V to meet various industrial requirements.
