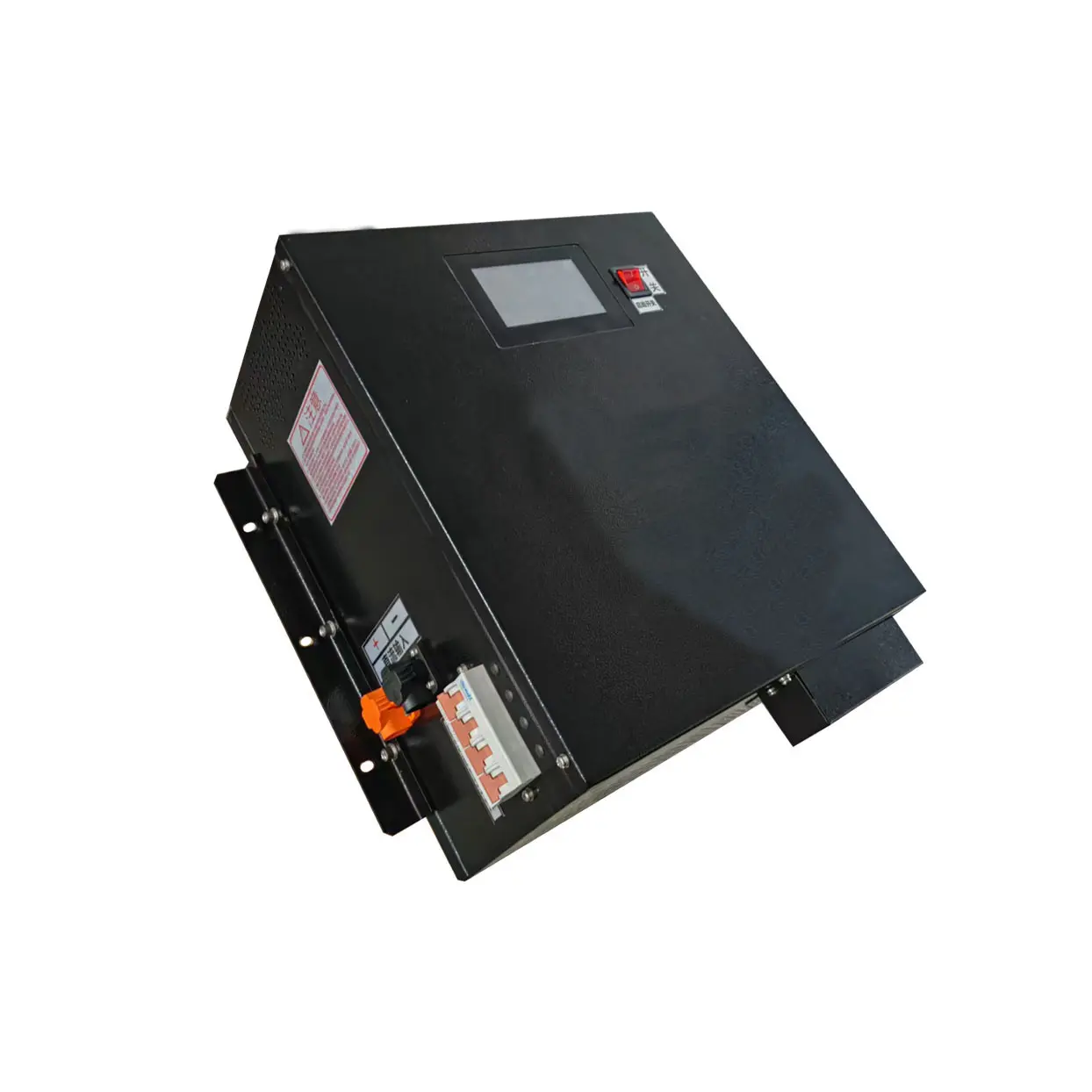

Custom 93% High-efficiency non-isolated marine inverter Manufacturers, Suppliers

Within marine electrical systems, balancing space, weight and energy efficiency presents a core challenge. This 93% high-efficiency non-isolated marine inverter achieves a breakthrough through its â€˜ultimate energy efficiency + compact designâ€™ approach, delivering a revolutionary solution for shipboard electrical systems.

Send Inquiry

Product Description

⚡ Peak Energy Efficiency

Advanced topology technology achieving 93% conversion efficiency. Reduces fuel and battery consumption significantly for maritime operations, aligning with green shipping trends.

📦 Compact Design

Volume reduced by 40% and weight by 30%. Non-isolated design allows flexible deployment in space-constrained engine rooms or bridge control stations.

🌊 Flexible & Stable Power

Supports single-phase/three-phase neutral-free output. Pure sine wave ensures compatibility with precision radar, navigation, and communication systems.

🛡️ Marine-Grade Reliability

Designed for harsh sea conditions: high salt spray, humidity, and vibration. Features intelligent protection against overloads and short circuits.

General Specifications
Model	BZP-10KW
Isolation Mode	Transformerless (Non-isolated)
DC Input Parameters
Rated Voltage (Vdc)	300-500V or 500-800V
Rated Current (A)	27A or 17A
AC Output Parameters
Rated Power	10KW
Waveform	Pure Sine Wave (THD < 3%)
Output Voltage	220V ±3% (Single Phase) / 380V ±3% (3-Phase)
Frequency	50Hz / 60Hz
Efficiency	> 93%
Overload Ability	120% for 35 seconds
Environment & Protection
Protection Grade	IP20 (Indoor/Cabin)
Working Temp	-25°C to +55°C
Protection Suite	Reverse polarity, under/overvoltage, short circuit, overheating

Frequently Asked Questions

What makes the BZP-10KW suitable for marine environments?

The unit features a marine-grade design specifically built to withstand high salt spray, humidity, and constant vibrations typical in maritime operations.

Can this inverter power sensitive electronic equipment?

Yes. It produces a pure sine wave output with a Total Harmonic Distortion (THD) of less than 3%, making it perfectly safe for radars, navigation tools, and communication systems.

How does the "transformerless" design benefit the vessel?

The non-isolated transformerless design reduces the overall volume by 40% and weight by 30%, freeing up critical space and improving fuel efficiency by reducing vessel load.

What happens if there is an output short circuit?

The inverter includes intelligent short-circuit protection. For safety, it does not automatically recover; the machine requires a manual restart to ensure the system is checked and safe.

What are the supported input voltage ranges?

The BZP-10KW supports two DC input configurations: 300-500V or 500-800V, providing flexibility for various battery or DC source setups.

Does it support global power standards?

Yes, it is configurable for both 50Hz and 60Hz frequencies and supports both single-phase (220V) and three-phase (380V) output modes.
