China Solar MPPT Pump Inverter 25-250KW Manufacturers, Manufacturer

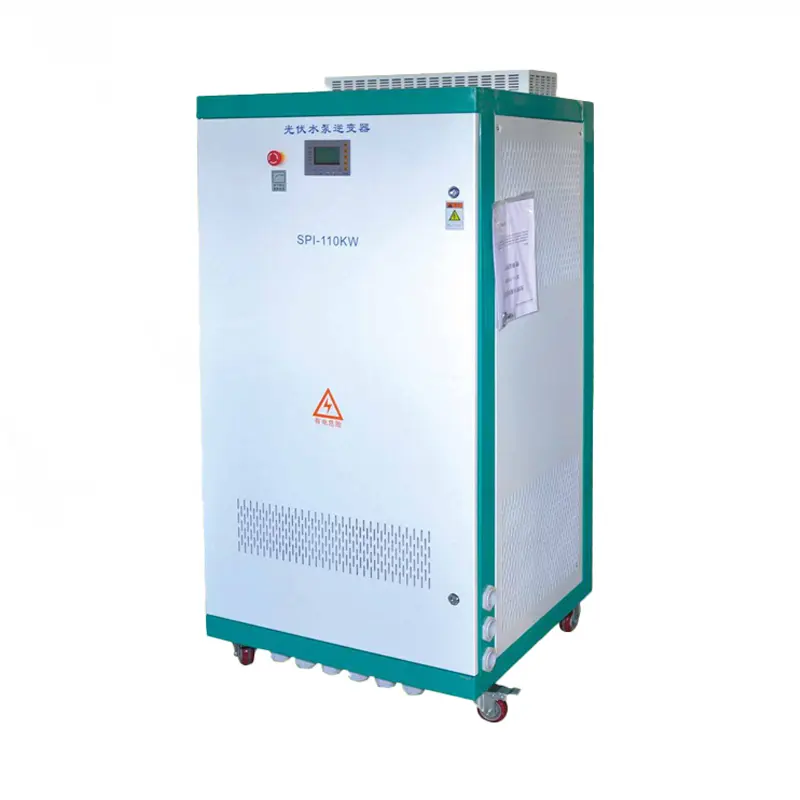

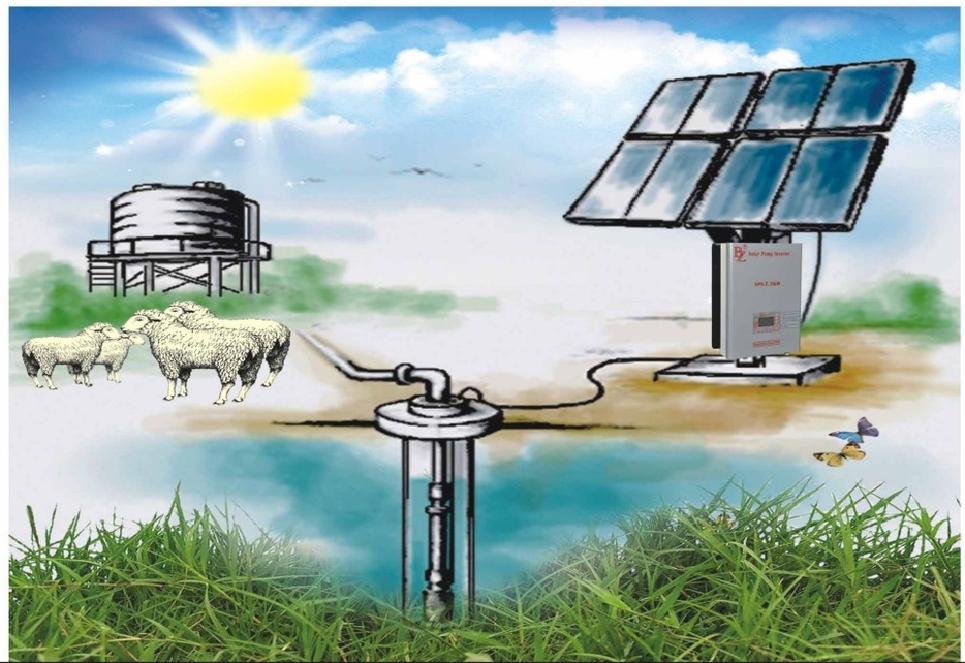

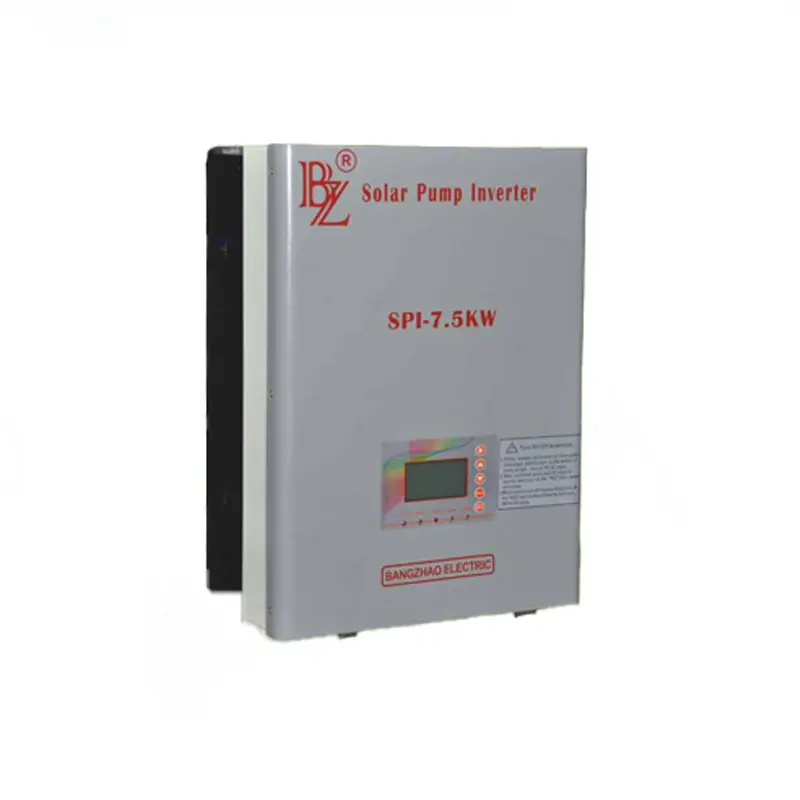

Bangzhao Electric's SPI series Solar MPPT Pump Inverter is an important part of PV pump inverter Â system,which convert the output DC from PV array into AC for driving pump,and according to Â the changes of sunlight intensity in real time to adjust the output voltage and frequency to Â achieve max.power point tracking and max the use of solar energy.

Send Inquiry

Product Description

Product Features

VI maximum power point tracking (MPPT) algorithm: Fast response speed and running stability, solving traditional MPPT issues of poor tracking and water hammer damage during rapid sunlight intensity changes.
Adopting high-efficiency IPM (Intelligent Power Module) from Mitsubishi with powerful protection functions and high stable performance.
Fully automatic operation: The system runs without human duty, saving significant manpower costs.
Variable Frequency Driver (VFD) technology: Ensures the pump can work even in low sunshine conditions, greatly improving solar array utilization.
Full digital control: Features automatic operation, data storage, and perfect protection functions with timing power on/off settings for unattended use.
LCD display operating panel: Easily set and view various operating parameters through the user-friendly interface.
Comprehensive Protection: Includes protection for PV input under/over voltage, reverse polarity, DC over-current, output overload, short circuit, dry well, overflow, dry running, and blocking.
Environmental & Economical Design: Uses water storage instead of battery storage. Direct drive pump system with high reliability and reduced construction/maintenance costs.
Modular Design: Ensures stable operation, high safety, and convenient installation or maintenance.
Remote Monitoring: Equipped with RS485 data communication for remote monitoring (Optional).

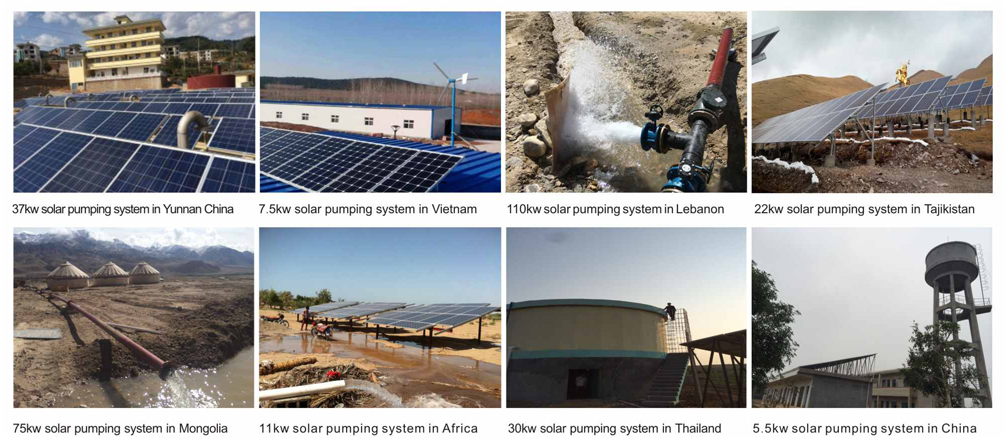

Application Scope

Product Parameters

Model	Adapted Pump Motor		Max PV Input (KWP)	Rated DC Input (V)	MPPT Voltage (V)	Rated AC Output Current (A)	Output Frequency (HZ)	Protection Degree
Model	Power (KW)	Voltage (V)	Max PV Input (KWP)	Rated DC Input (V)	MPPT Voltage (V)	Rated AC Output Current (A)	Output Frequency (HZ)	Protection Degree
SPI-1500W	1.1~1.5	200~220	1.85	360	300~600	9	0~50/60	IP65
SPI-2200W	2.2		3			13
SPI-3700W	3~3.7		4.5			22
SPI-5500W	4.5~5.5	380~480	7	600	400~800	11
SPI-7500W	7.5		9			15
SPI-11KW	9.2~11		13			22
SPI-15KW	13~15		18			30
SPI-18KW	18.5		21			35
SPI-22KW	22		25			45
SPI-30KW	26~30		35			60
SPI-37KW	37		45			75		IP20
SPI-45KW	40~45		53			90
SPI-55KW	55		65			110
SPI-64KW	64		76			130
SPI-75KW	75		88			150
SPI-90KW	90		113			180
SPI-110KW	110		130			220
SPI-132KW	132		156			260
SPI-150KW	150		176			300

Frequently Asked Questions

Does this system require batteries to operate?

No, the system is designed to drive the pump directly using solar power. It uses water storage (in tanks or reservoirs) instead of expensive battery storage to reduce maintenance and construction costs.

What is the benefit of the MPPT algorithm?

The VI Maximum Power Point Tracking (MPPT) algorithm ensures fast response and stability, maximizing the power output from the solar array even when sunlight intensity changes rapidly.

Can the pump work in low sunlight conditions?

Yes, the inverter utilizes advanced Variable Frequency Driver (VFD) technology, allowing the pump to operate at adjusted speeds during periods of less sunshine, ensuring maximum utilization of available energy.

Is the system easy to monitor remotely?

The inverter is equipped with an LCD panel for local setting and monitoring. It also offers an optional RS485 communication interface for remote data monitoring.

What kind of protections does the inverter offer?

The unit includes a complete range of protections: PV over/under voltage, reverse polarity, output overload, short circuit, dry well protection, overflow protection, and blocking protection.
