China 9U Wall mounted DC to AC Power Inverter Factory, Exporter

In the field of new energy electric vehicles or vessels, the mains-frequency isolated inverter serves as a core power conversion component, undertaking the critical task of converting direct current from the traction battery into alternating current. Its compact size and resistance to vibration and shock make it the preferred solution for onboard and marine power supply systems.

Send Inquiry

Product Description

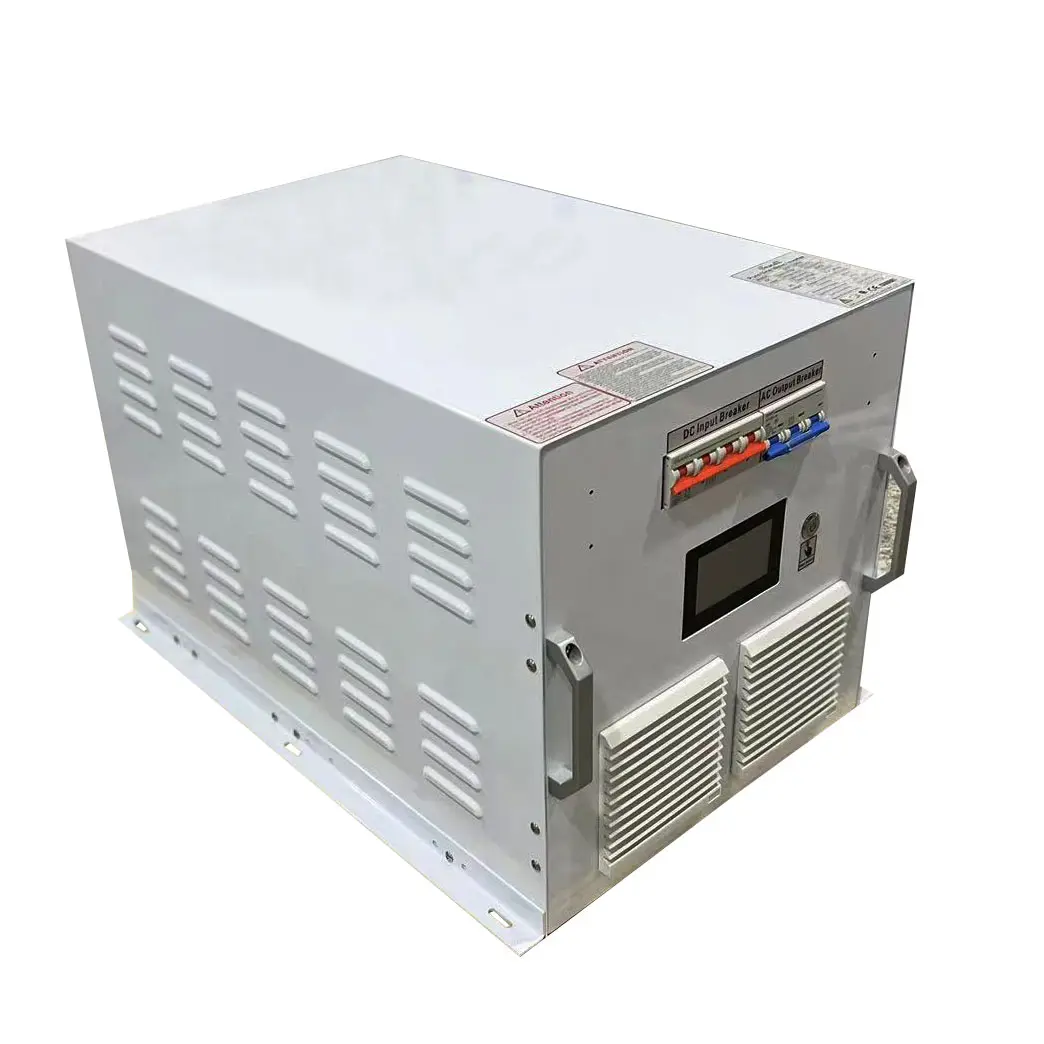

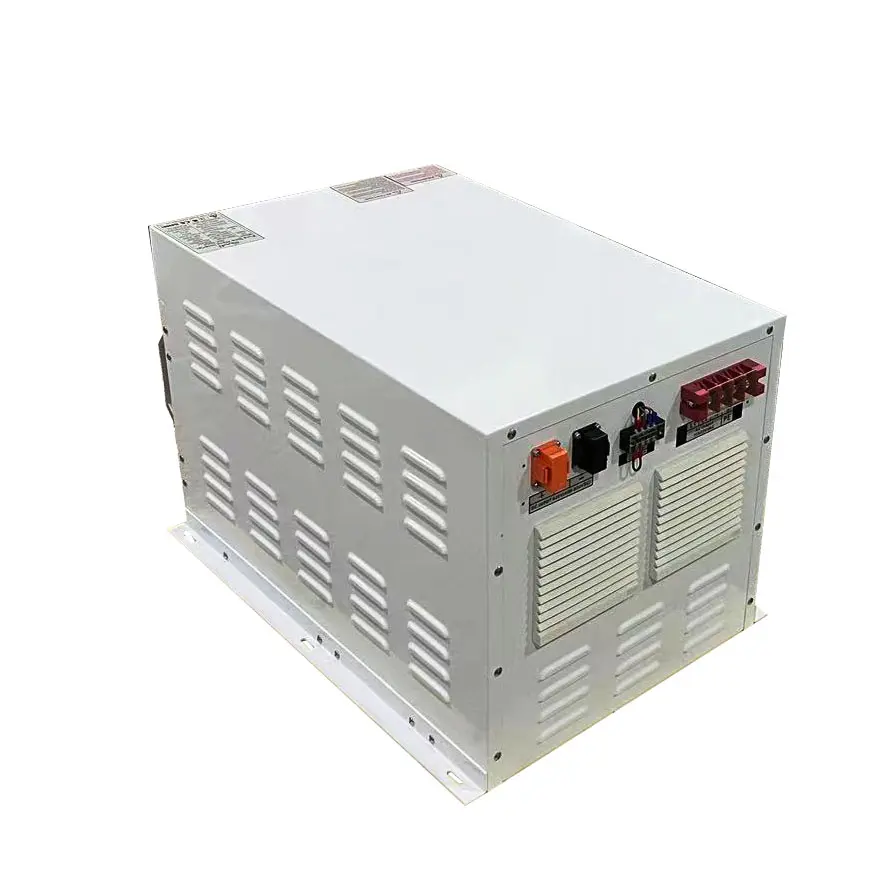

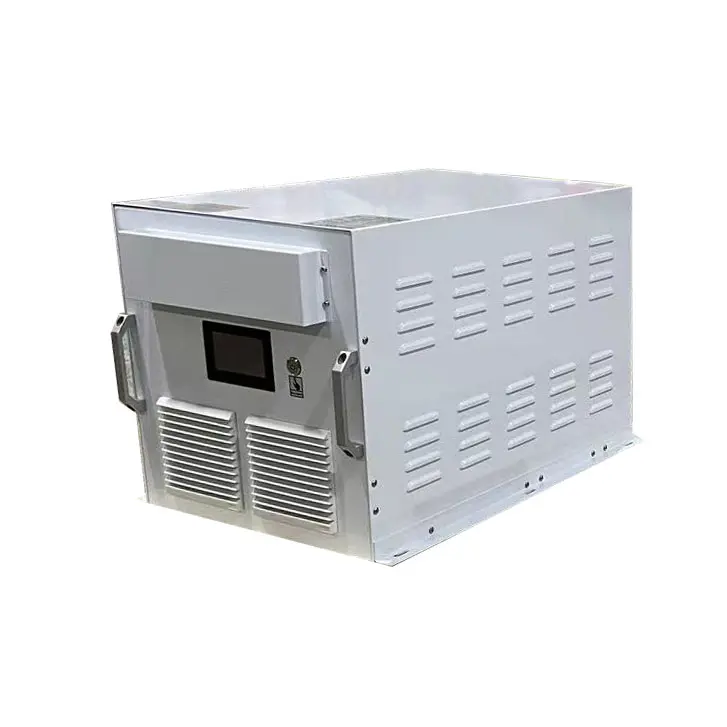

The 9U wall-mounted DC-AC inverter is a high-efficiency power conversion device specifically designed for space-constrained environments. Its 9U standard rack height (approximately 400mm) accommodates wall-mounted installation, making it suitable for domestic, commercial, and industrial settings. Employing pure sine wave output technology with waveform distortion <3%, this inverter is compatible with precision equipment such as servers, medical instruments, and industrial control systems, ensuring stable power supply.

Key Technical Features

✓

Intelligent Control: Integrates a CPU control system compatible with lead-acid and lithium-ion batteries.

✓

Comprehensive Protection: Built-in protection against overload, short circuit, over-temperature, and voltage fluctuations.

✓

Modular Design: Facilitates easy maintenance and supports RS485/CAN communication for remote monitoring.

✓

Mains Bypass: Supports complementary mains bypass functionality for intelligent operation and maintenance.

Product Specifications

Model		BZP-10KW
Isolation mode		Low Frequency Transformer
DC Input	Rated voltage (Vdc)	228V
DC Input	Rated current (A)	43.8A
AC Output	Rated output power	10KW
	Output waveform	Pure Sine Wave
	Rated Voltage	220VAC ±3%	380VAC ±3%
	Phases	Single phase	3 phase 4 wire
	Rated current (A)	45.5A	15A (phase current)
	Frequency	50Hz or 60Hz
	Power Factor (PF)	0.99
	Efficiency	>92%
	THD	<3% (Linear load)
	Display	LCD
Communication		RS485 (Optional)
Environment	Working Temp	-25 to +55 ℃
Mechanical	Dimension (DWH)	700x450x390mm
Weight	Kg	150Kg		155Kg

Application scenarios encompass off-grid photovoltaic systems, data centre UPS, emergency power for telecommunications base stations, and industrial automation equipment. With the proliferation of new energy sources and the advancement of global "dual carbon" goals, these inverters are experiencing sustained growth in demand owing to their high efficiency, stability, and ease of installation.

Frequently Asked Questions

1. What are the advantages of a 9U wall-mounted design? The 9U (approx. 400mm height) wall-mounted design is ideal for space-constrained environments, allowing for secure installation on walls in data centers, industrial plants, or telecommunications stations without occupying floor space.

2. Can this inverter be used with lithium batteries? Yes, the intelligent CPU control system is fully compatible with multiple battery types, including both traditional lead-acid batteries and modern lithium-ion battery systems.

3. What does "Pure Sine Wave" mean for my equipment? A pure sine wave output with <3% distortion ensures that the power is as clean as or cleaner than utility grid power. This is essential for protecting precision equipment like medical instruments, servers, and sensitive industrial controllers.

4. Does the system support remote monitoring? Yes, the inverter features a modular design that supports RS485 and CAN communication protocols, enabling remote monitoring and intelligent operation and maintenance.

5. What happens during an output short circuit? For safety reasons, the inverter features short-circuit protection without automatic recovery. If a short circuit occurs, the machine must be restarted manually after the fault is cleared to ensure system integrity.

6. Is it suitable for high-altitude environments? The inverter is designed to operate efficiently at altitudes up to 2000 meters and can withstand temperatures ranging from -25℃ to +55℃.
