Choosing a Shore Power Converter is a practical engineering decision, not a simple equipment purchase. A vessel may appear quiet at berth, yet its auxiliary engines can still consume fuel for lighting, pumps, ventilation, and hotel loads. The IMO Fourth GHG Study 2020 estimated that international shipping produced about 2.89% of global anthropogenic greenhouse-gas emissions in 2018. Shore connection systems can reduce local exhaust emissions, but their climate benefit depends on the electricity source and conversion losses.
The first question is compatibility. Check the vessel’s required voltage, frequency, phase arrangement, maximum demand, and short-term load changes. A converter rated for 50 Hz may not suit a ship operating at 60 Hz. Measure real onboard loads, including cranes, refrigeration compressors, bow thrusters, and battery chargers. A specification sheet rarely shows the whole picture.
Safety and reliability matter just as much. IEC/IEEE 80005 provides widely recognized requirements for high-voltage shore connection systems, while class approval can support installation confidence. Review galvanic isolation, harmonic distortion, voltage regulation, cooling design, enclosure protection, emergency shutdown, and communication interfaces. DNV’s Maritime Forecast to 2050 emphasizes the growing importance of electrical infrastructure as shipping decarbonizes, but the transition will not be perfectly smooth.
The cheapest converter may look sensible on paper. It may perform poorly during sudden load changes. Ask suppliers for tested efficiency curves, fault records, maintenance intervals, and references from similar vessels. A perfect choice does not exist. The strongest choice balances electrical performance, port infrastructure, crew usability, lifecycle cost, and future upgrades. Check every assumption before signing.

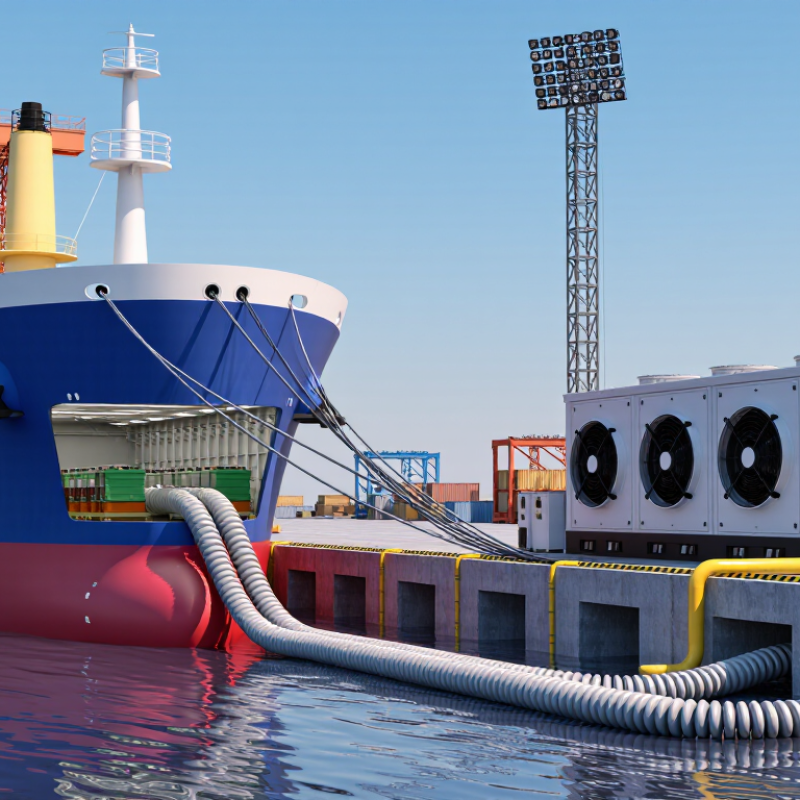

How to Choose a Shore Power Converter?
Before selecting a shore power converter, identify the supply voltage and frequency at your mooring. Common systems provide 120 V or 240 V, while frequency may be 50 Hz or 60 Hz. These values must match the converter’s input specifications. A 120 V converter connected to 240 V can fail immediately and create a serious hazard. Do not rely only on a socket shape or faded label. A qualified electrician should verify the pedestal with an approved meter.
Frequency also matters. Some converters operate at 50 and 60 Hz, but others accept only one frequency. Check the equipment plate, installation guide, and measured supply. I once assumed a familiar outlet meant 60 Hz, but the local supply was 50 Hz. That assumption could have damaged sensitive equipment. Small details matter.
Tips: Record the voltage and frequency before shopping. Check whether the supply is single-phase or split-phase. Confirm the converter’s acceptable input range, output voltage, wattage, and protection features. Leave extra capacity for startup surges from pumps or chargers. Keep the measurement record with the vessel documents. If readings fluctuate noticeably, stop and investigate. A converter should not be chosen by price alone. Professional advice may feel slower, but an incorrect match can cost far more.
Identify Shore Power Voltage and Frequency: 120/240 V and 50/60 Hz
The chart compares common nominal AC shore-power systems. In North American split-phase service, 120 V is measured line-to-neutral and 240 V line-to-line, typically at 60 Hz. European and Australian/New Zealand systems commonly provide approximately 230 V at 50 Hz. Confirm the marina’s actual voltage, phase arrangement, and frequency before selecting a converter.
How to Choose a Shore Power Converter?
Converter capacity should begin with the continuous load, not the largest appliance label. Under NFPA 70 (2023), a continuous load operating for three hours or more is generally calculated at 125% for circuit sizing. This principle is useful for shore power converters, although the converter manual and vessel standards remain decisive. Add the running wattage of navigation systems, refrigeration, lighting, pumps, and battery charging. For example, a measured continuous load of 1,200 watts requires at least 1,500 watts of converter output. That is 1,200 × 1.25. At 90% efficiency, shore-side input may approach 1,667 watts. Check the real operating voltage.
Startup demand can expose a weak design. Motors and compressors may draw several times their running current for a few seconds, according to U.S. Department of Energy motor efficiency guidance. A converter rated only for average demand may trip when a refrigeration compressor starts. Include measured inrush current where possible. Temperature also matters. IEC 60092-504 emphasizes safe electrical installation practices for ships, including equipment suitability and installation conditions. Heat, restricted airflow, and long cable runs reduce practical capacity. My cautious view: laboratory ratings are not vessel conditions. Some calculations still need revision after sea trials.
Tips: Use a clamp meter during peak operation. Separate continuous and intermittent loads. Add charging demand. Verify voltage drop, ventilation, and protection settings. Leave reasonable headroom, but avoid oversizing blindly; light-load efficiency can suffer. Keep a written load schedule for future equipment changes.
How to Choose a Shore Power Converter?
A shore power converter should match your vessel’s voltage, load, and electrical environment. Start by checking whether galvanic isolation is necessary. An isolation transformer separates shore wiring from onboard circuits, reducing shock risks and stray-current corrosion. It also adds weight, cost, and some energy loss. For metal-hulled boats, that tradeoff deserves careful attention.
Waveform quality matters when powering pumps, chargers, motors, or sensitive electronics. A pure sine wave usually creates less heat, noise, and vibration than a stepped waveform. I would test difficult loads, not only a desk lamp. A motor may start smoothly during testing, then struggle when the cabin temperature drops. That detail is easy to miss. Check the converter’s continuous rating, surge capacity, ventilation space, and protective shutdown functions.
Efficiency should be a firm selection target. Aim for at least 90% under normal operating load, then inspect performance at lighter loads. A converter rated at 94% may draw noticeably more power while nearly idle. Measure input watts and output watts with a reliable meter, preferably after the unit reaches operating temperature. A warm enclosure can reveal hidden losses. Specifications are useful, but installation conditions change results. Cable length, connection quality, and airflow all matter. I have seen an efficient unit perform poorly because its terminals were loose. That was not the converter’s fault, but it changed the outcome. Choose the model that remains efficient, stable, and quiet during your actual onboard routine.
| Converter Type | Typical Shore Input | Output Form | Galvanic Isolation | Typical Efficiency at Rated Load | Waveform or Regulation | Main Advantages | Common Limitations | Best-Fit Application | Efficiency Target |
|---|---|---|---|---|---|---|---|---|---|
| Non-Isolated High-Frequency AC–DC Converter | 100–240 V AC, 50/60 Hz | Regulated 12 V, 24 V, or 48 V DC | No | 90–96% | Low-ripple regulated DC; switching ripple requires filtering | High efficiency, compact size, low weight, and generally lower cost | Input and output are not electrically separated; grounding and touch-safety design require extra care | Equipment with a common protective-earth system and no requirement for galvanic separation | Usually meets the 90% target |
| Isolated High-Frequency AC–DC Converter | 100–240 V AC, 50/60 Hz | Regulated 12 V, 24 V, or 48 V DC | Yes, through a high-frequency transformer | 90–95% | Regulated DC with controlled ripple and transient response | Provides electrical separation, improved fault protection, and flexible grounding | More components, higher cost, and slightly greater size than a non-isolated design | Marine electronics, sensitive equipment, and installations with separate DC and AC grounding systems | Preferred option when isolation and efficiency are both required |
| Low-Frequency Isolation Transformer with Rectifier | 120 V or 230 V AC, 50/60 Hz | Unregulated or lightly regulated DC | Yes, through a 50/60 Hz transformer | 80–92% | Rectified DC with comparatively higher ripple unless additional filtering is used | Robust, simple, tolerant of short-term overloads, and easy to service | Heavy and bulky; magnetizing losses can reduce efficiency at light load | Legacy systems, rugged fixed installations, or applications where weight is not critical | Select carefully; many units do not consistently reach 90% |
| Isolated AC–AC Frequency Converter | 120 V or 230 V AC, 50/60 Hz | 120 V or 230 V AC | Usually yes, depending on transformer construction | 88–95% | Pure sine-wave output when a transformer or sine-wave inverter stage is used | Can provide voltage conversion, frequency conversion, and galvanic separation | Output quality and efficiency vary significantly with load and conversion topology | Marine appliances or shore systems requiring a different voltage or frequency | Choose a model rated at 90% or higher at the intended load |
| Pure Sine-Wave Inverter/Charger | AC shore input with DC battery connection | Pure sine-wave AC output plus battery charging | May be isolated or non-isolated; verify the electrical design | 85–94% in inverter mode; charging efficiency is separate | Low-distortion sine wave, typically suitable for motors and sensitive electronics | Combines shore transfer, battery charging, and backup AC power in one system | Standby losses and conversion losses can be significant; isolation cannot be assumed | Boats or mobile systems needing uninterrupted AC power and battery backup | Use the inverter-mode efficiency rating, not only the charger rating |
| Modified Sine-Wave Inverter/Charger | AC shore input with DC battery connection | Stepped or modified sine-wave AC output | May be isolated or non-isolated; verify the electrical design | 80–90% | Stepped waveform with higher harmonic content | Lower initial cost and simple circuitry | May cause extra heat, audible noise, reduced motor performance, or compatibility problems | Basic resistive loads and non-sensitive equipment only | Generally not recommended when clean power or 90% efficiency is required |
Choosing a shore power converter begins with marine safety, not output voltage alone. A converter sits between dockside electricity and sensitive onboard circuits. Its failure can cause heat, shock, or equipment damage. During inspections, I check the installation space, ventilation, cable routing, and grounding path before comparing specifications. A neat cabinet is not automatically a safe one.
ABYC E-11 provides practical requirements for AC electrical systems on boats, including overcurrent protection, conductor identification, bonding, polarity, and shore power connections. Verify that the converter and installation instructions support applicable E-11 requirements. Check breaker ratings, wire sizes, terminals, and strain reliefs together. One overlooked connection can defeat an otherwise compliant design. Do not rely on a generic marine-grade statement.
IEC 60092 covers electrical installations in ships, including equipment construction, testing, protection, and installation. The correct section depends on vessel type and operating conditions. Request current conformity documents, test reports, ingress protection details, and temperature limits. Confirm compatibility with local inspection rules, shore frequency, voltage, and isolation requirements. A certificate alone may not prove the installed system is correct. I would photograph terminal labels before commissioning; memory is unreliable in a cramped locker. If documents conflict, pause the installation and seek a qualified marine electrician’s review. Safety margins deserve more attention than the lowest purchase price.
Choosing a shore power converter begins with its protection features, not its advertised output. In damp marinas, dust, spray, condensation, and careless cable placement can all affect safety. Check the IP rating carefully: the first digit indicates solid-particle protection, while the second addresses water ingress. A suitable enclosure should match the converter’s mounting location, not merely the vessel’s brochure specifications. An exposed cockpit installation needs more protection than a dry, ventilated locker. Water finds weak points.
I once treated an IP rating as a complete safety answer. That was a mistake. An RCD or GFCI monitors current imbalance and disconnects power when leakage threatens a person. Choose a converter with compatible residual-current protection, then verify the test button during commissioning. The device must be wired, grounded, and maintained correctly by a qualified professional. A nuisance trip may indicate moisture, damaged insulation, or an overloaded circuit, rather than a faulty protector. Never bypass it for convenience.
Surge protection helps limit brief voltage spikes caused by switching events or nearby lightning activity. It cannot correct poor grounding or replace correctly sized breakers. Look for clear ratings, replaceable protection components, and installation instructions suited to shore-power systems. Inspect connections for heat marks, corrosion, and loosened terminals after heavy use. Small details matter. Leave space around the converter for airflow, because protection can fail when heat builds unnoticed. That may sound cautious, but marine electricity rewards caution.
Measure the dock supply before shopping. Common values include 120 or 240 volts, and 50 or 60 hertz. Record both readings.
No. Socket shapes and faded labels can mislead you. A qualified electrician should verify the pedestal with an approved meter. Small details matter.
A 120-volt converter connected to 240 volts may fail immediately. It can also create heat, equipment damage, or serious electrical danger.
Some converters accept both 50 and 60 hertz. Others accept only one frequency. Check the equipment plate and measured supply. Familiar outlets can deceive.
Match the output voltage and wattage to your onboard equipment. Leave extra capacity for pump and charger startup surges. More capacity is not always better.
Check breakers, wire sizes, terminals, grounding, cable routing, and strain reliefs together. A neat cabinet is not automatically safe. Installation quality matters.
Choose an enclosure suited to its location. Check water and dust protection, residual-current protection, and surge protection. Water finds weak points.
Do not bypass the protection device. Repeated trips may indicate moisture, damaged insulation, or an overloaded circuit. Stop and investigate with a qualified professional.
Keep airflow clear and inspect terminals for corrosion, heat marks, or looseness. Test the protection device during commissioning. I might overlook one connection, so photographs help.
Choosing the right Shore Power Converter begins with identifying the vessel’s incoming voltage and frequency, such as 120 or 240 volts and 50 or 60 hertz. Confirm that the converter is compatible with the marina’s electrical supply and the boat’s onboard equipment. Next, calculate the total connected load and continuous demand, then select a converter rated for at least 125% of that demand to allow for startup surges and future needs.
Compare key performance factors, including electrical isolation, output waveform, and efficiency. An efficiency rating of 90% or higher can help reduce energy loss and excess heat. Marine safety is equally important, so verify that the installation aligns with applicable requirements such as ABYC E-11 and IEC 60092. Finally, look for suitable enclosure protection, RCD or GFCI compatibility, overload and short-circuit protection, and surge protection. A careful evaluation of these features will support reliable, efficient, and safer onboard power conversion.
